Connector Terminal Identification (G Series)
›
Daytime Running Lamp Connectors
›
Daytime Running Lamp Control Module
Daytime Running Lamp Control Module

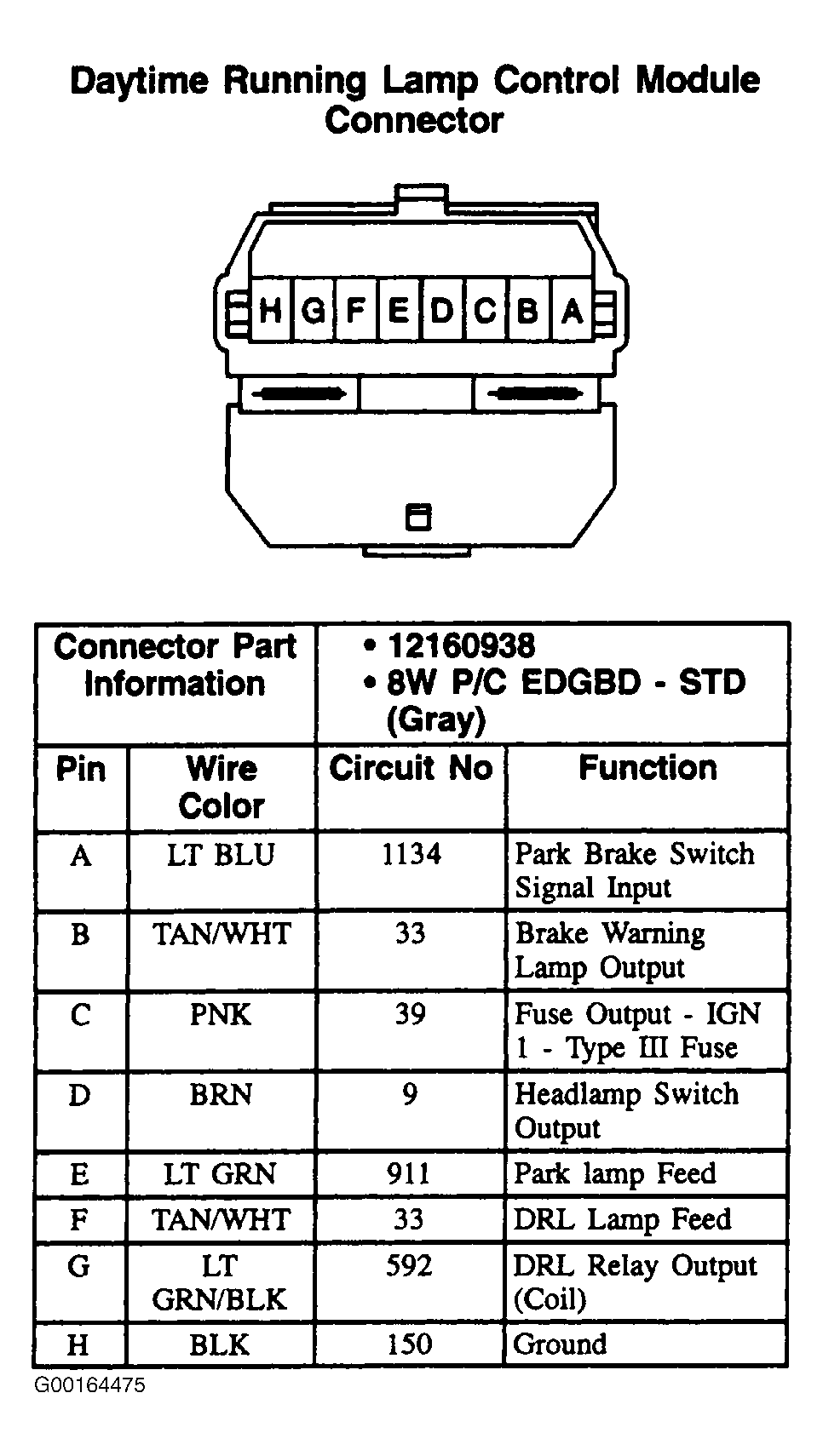

Fig 1: Daytime Running Lamp Control Module - 8-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
