Connector Terminal Identification (G Series)
›
Daytime Running Lamp Connectors
›
Daytime Running Lamp Diode Module
Daytime Running Lamp Diode Module

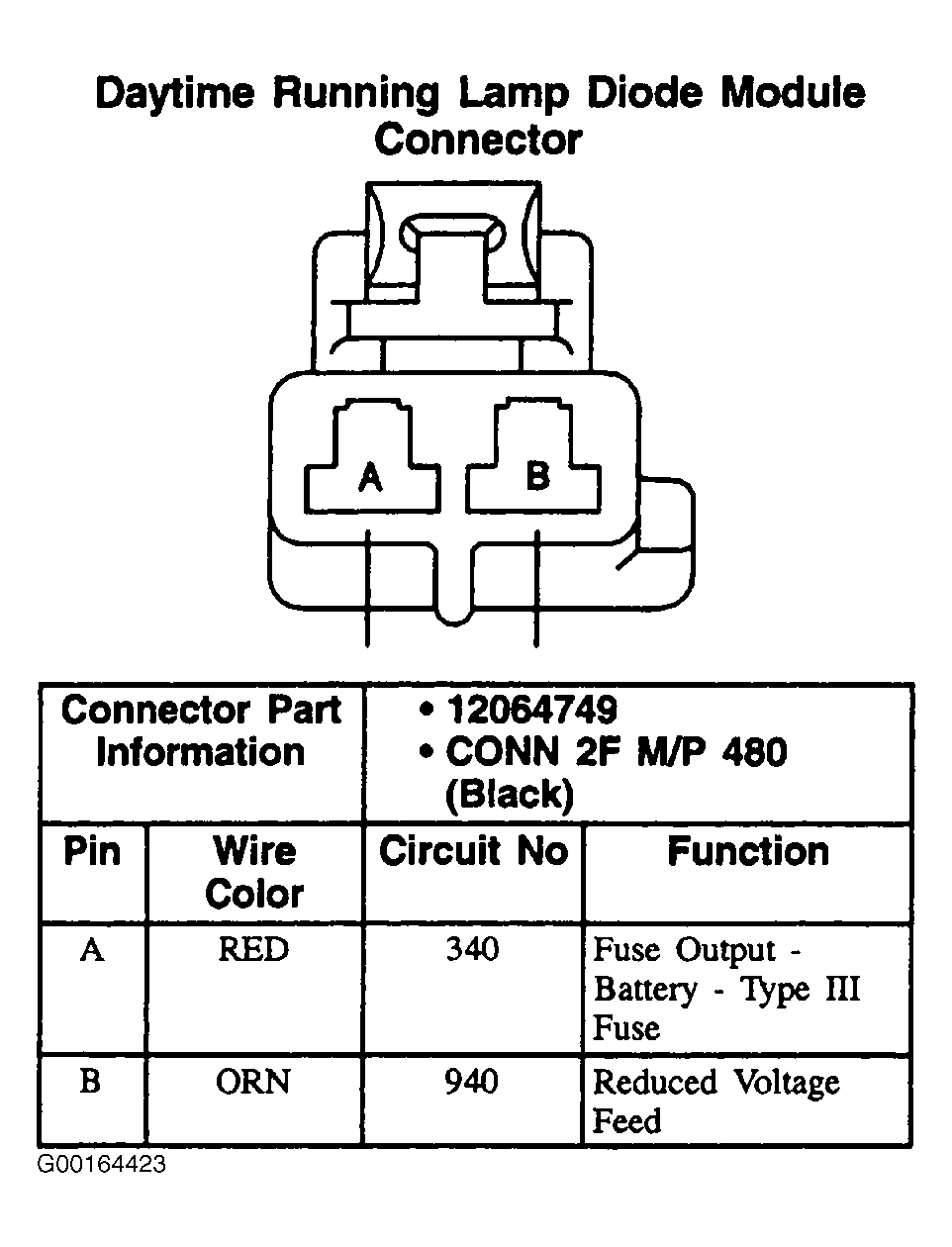

Fig 1: Daytime Running Lamp Diode Module - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
