Connector Terminal Identification (G Series)
›
Dome Lamp
Dome Lamp

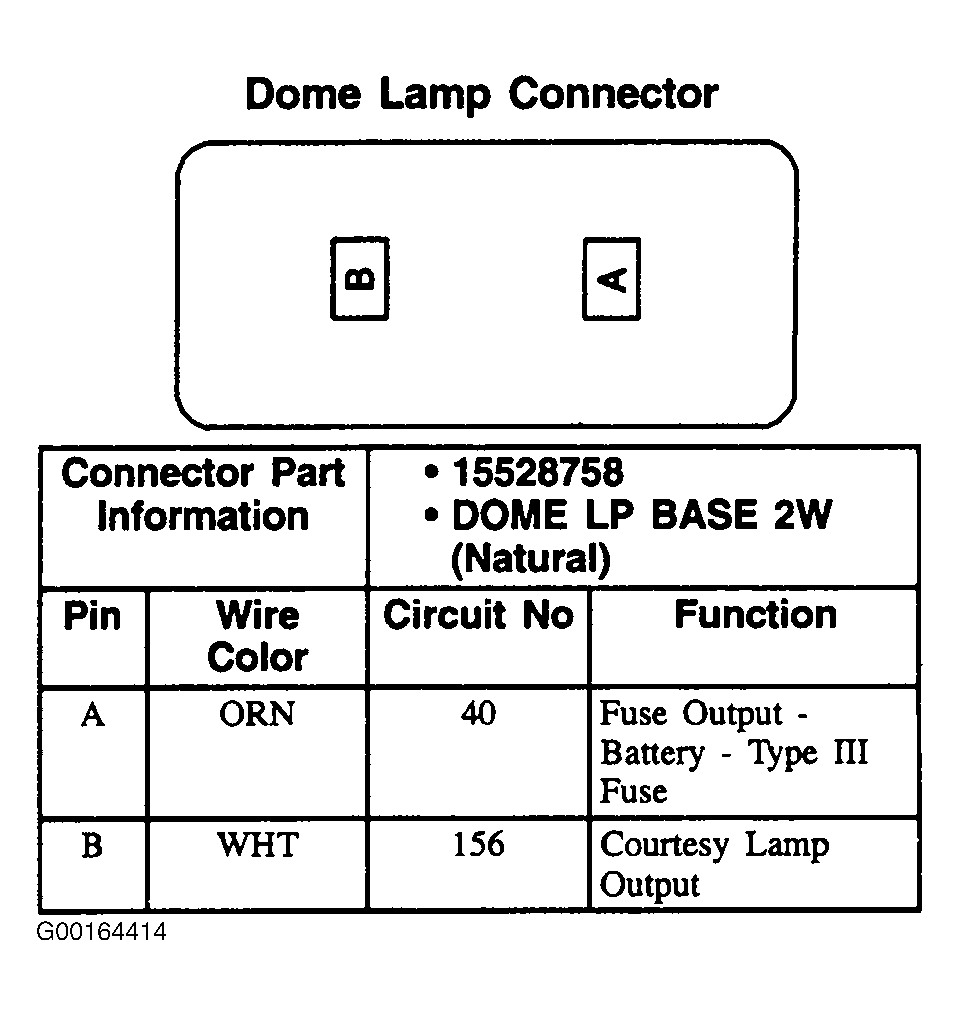

Fig 1: Dome Lamp - 2-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
