Electronic Brake Control Module (C1)

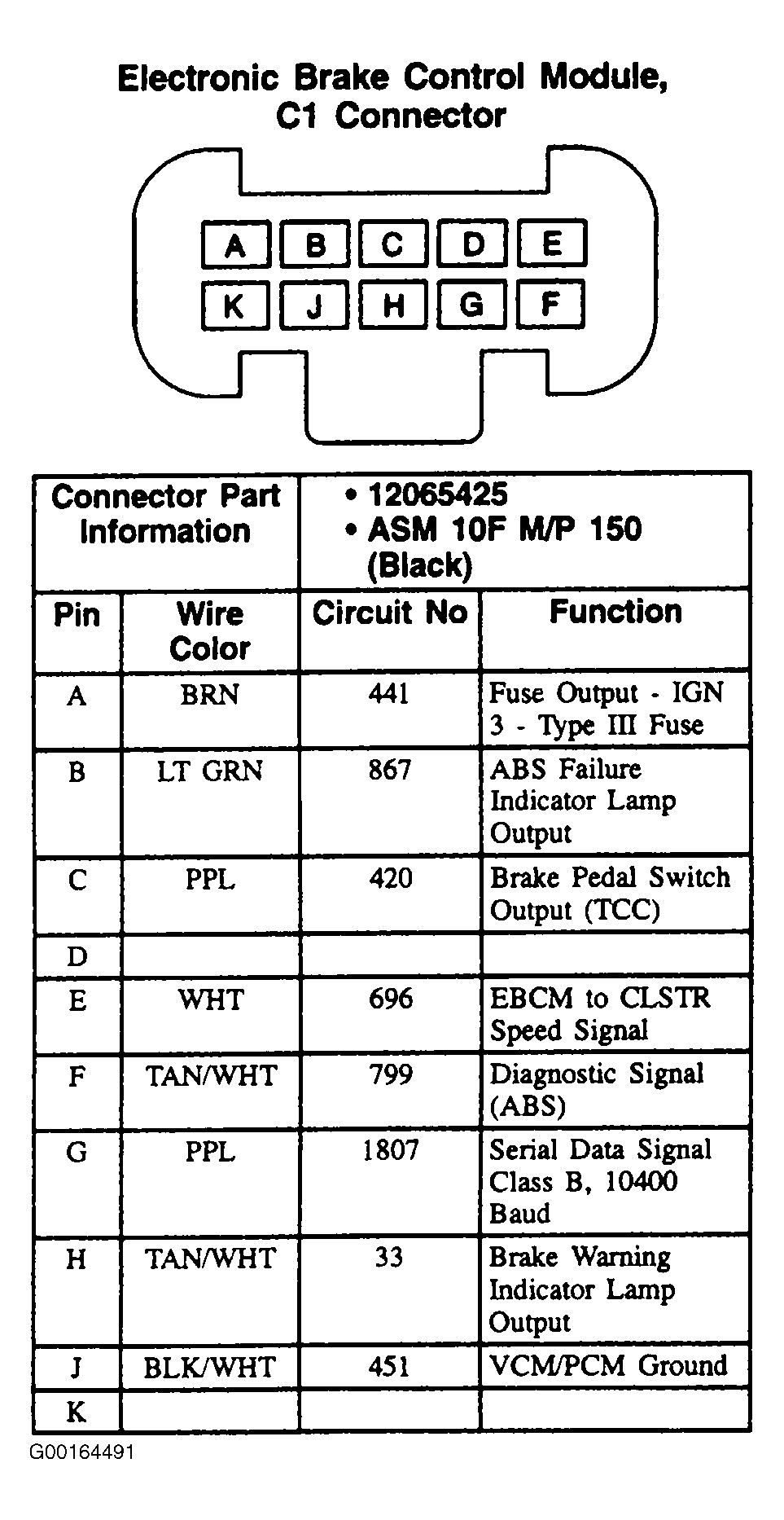

Fig 1: Electronic Brake Control Module (C1) - 10-Pin Connector, Black
G00164491Courtesy of GENERAL MOTORS CORP.
