Electronic Brake Control Module (C2)

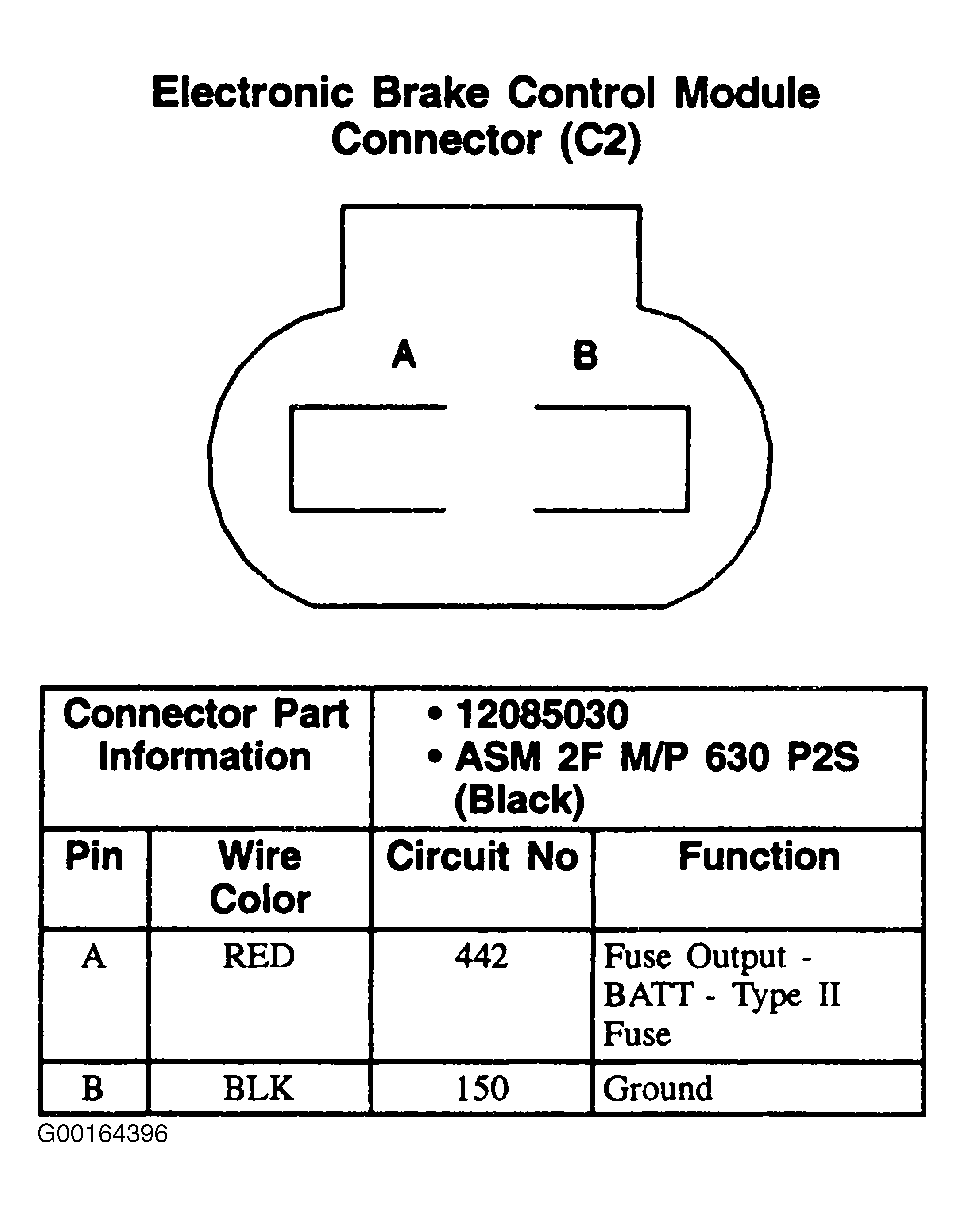

Fig 1: Electronic Brake Control Module (C2) - 2-Pin Connector, Black
G00164396Courtesy of GENERAL MOTORS CORP.
