Front Auxiliary HVAC Control Module (Cargo)

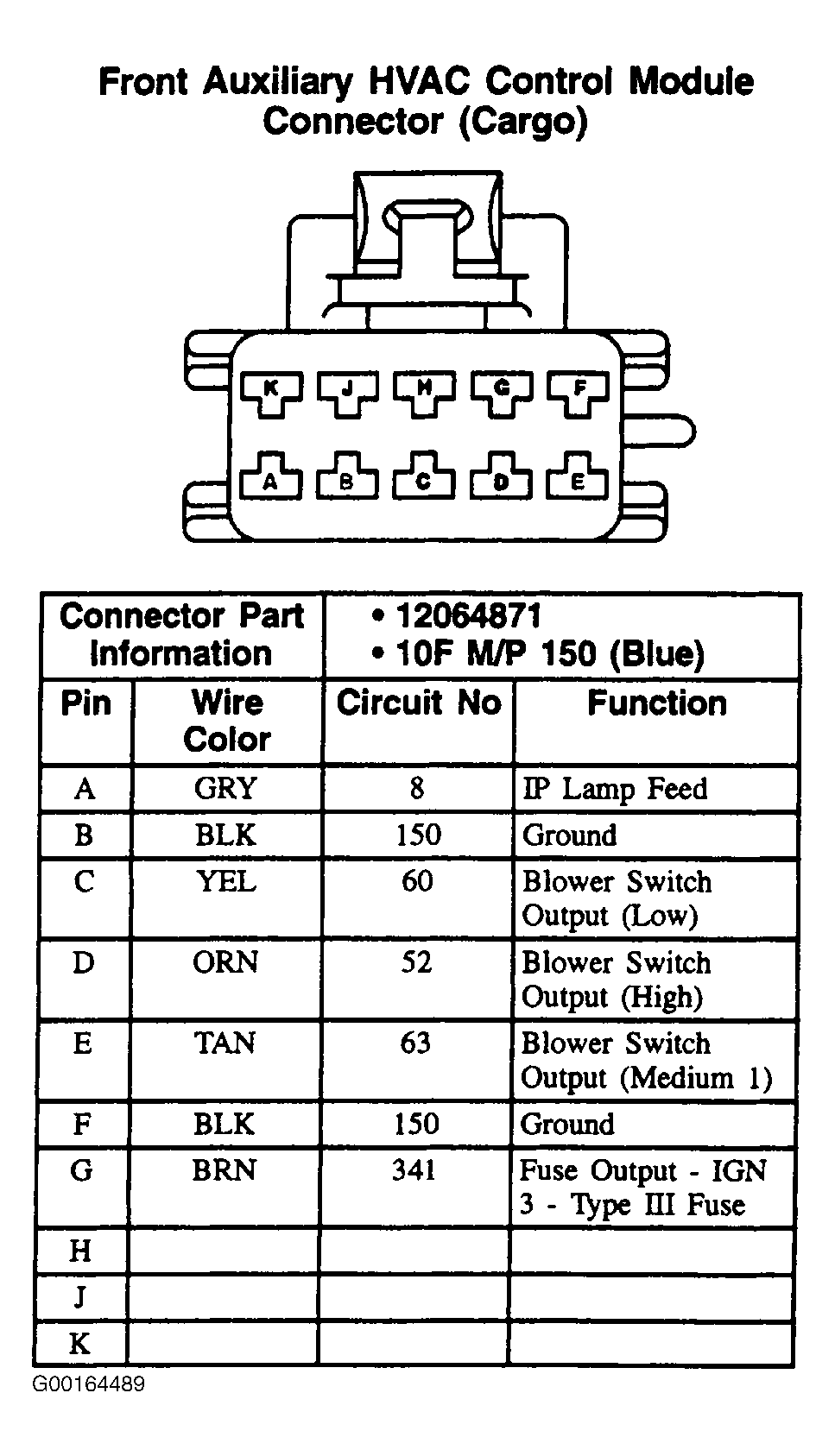

Fig 1: Front Auxiliary HVAC Control Module (Cargo) - 10-Pin Connector, Blue
G00164489Courtesy of GENERAL MOTORS CORP.
