Fuel Sender Buffer Module

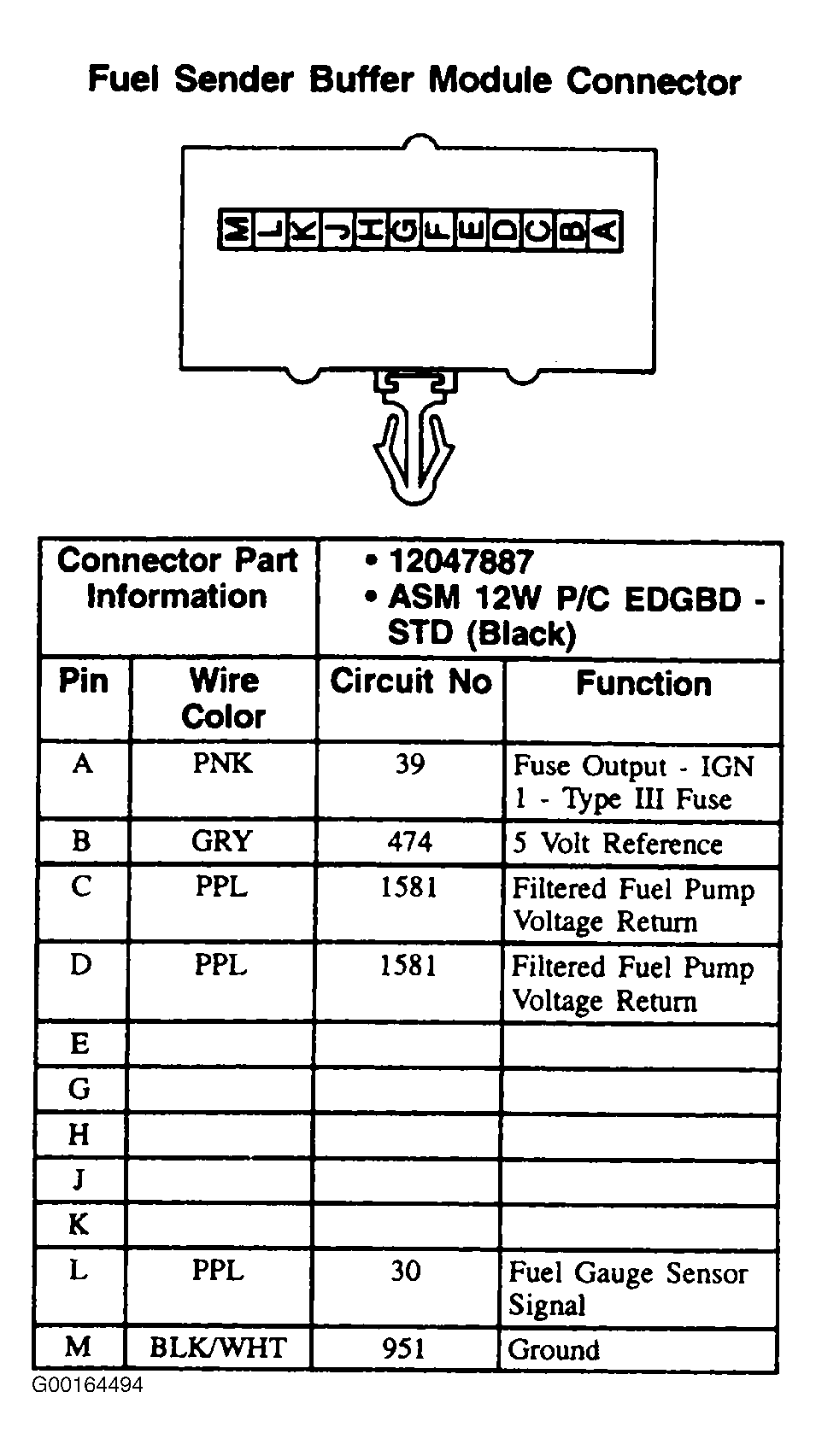

Fig 1: Fuel Sender Buffer Module - 12-Pin Connector, Black
G00164494Courtesy of GENERAL MOTORS CORP.
