Connector Terminal Identification (G Series)
›
Glow Plug Connectors
›
Glow Plug
Glow Plug

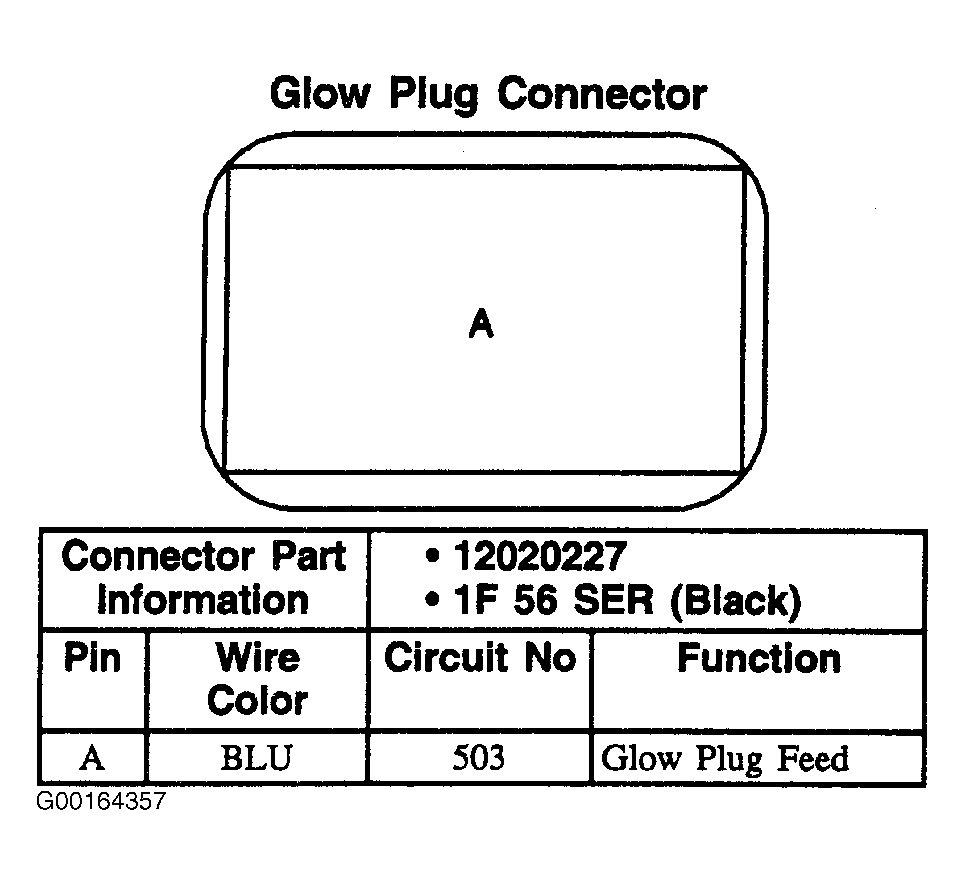

Fig 1: Glow Plug - 1-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
