Connector Terminal Identification (G Series): Horn

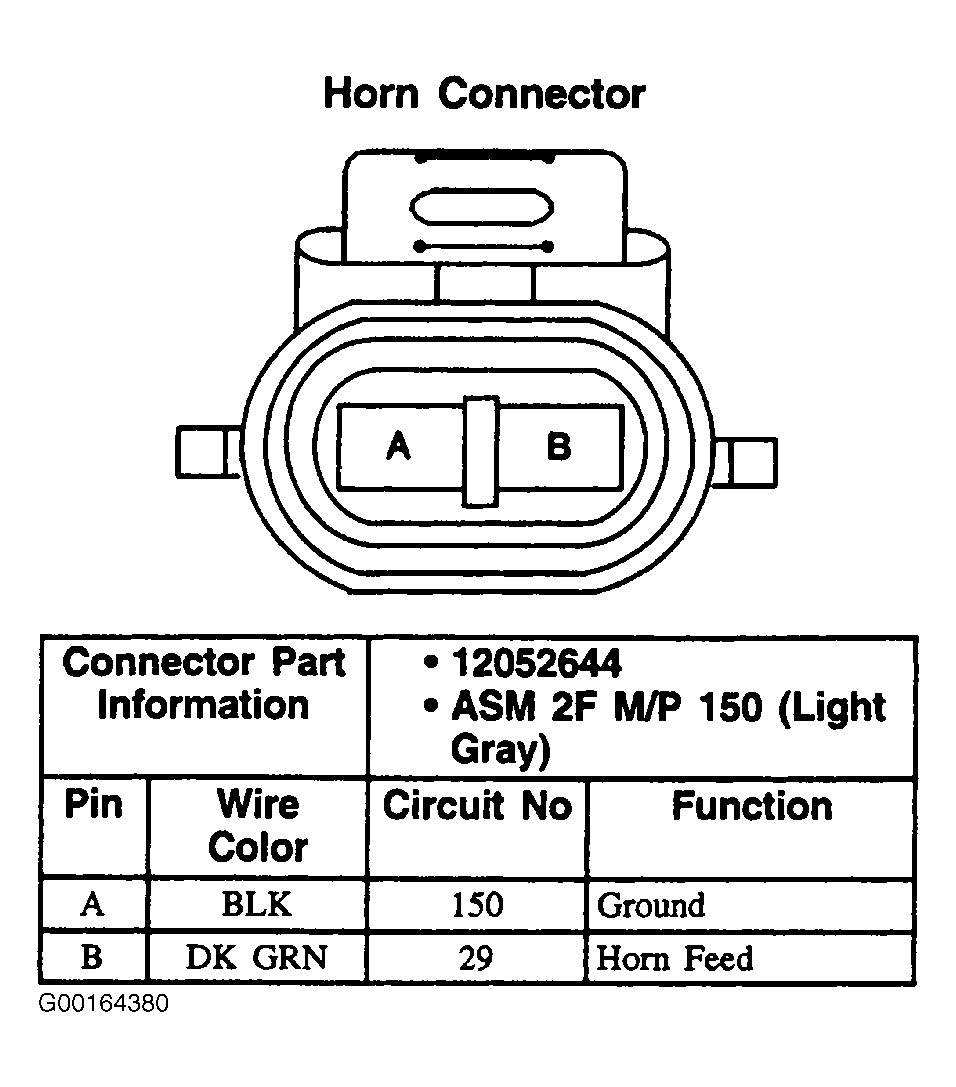

Fig 1: Horn - 2-Pin Connector, Light Gray
G00164380Courtesy of GENERAL MOTORS CORP.
