Connector Terminal Identification (G Series)
›
Idle Air Control Valve
Idle Air Control Valve

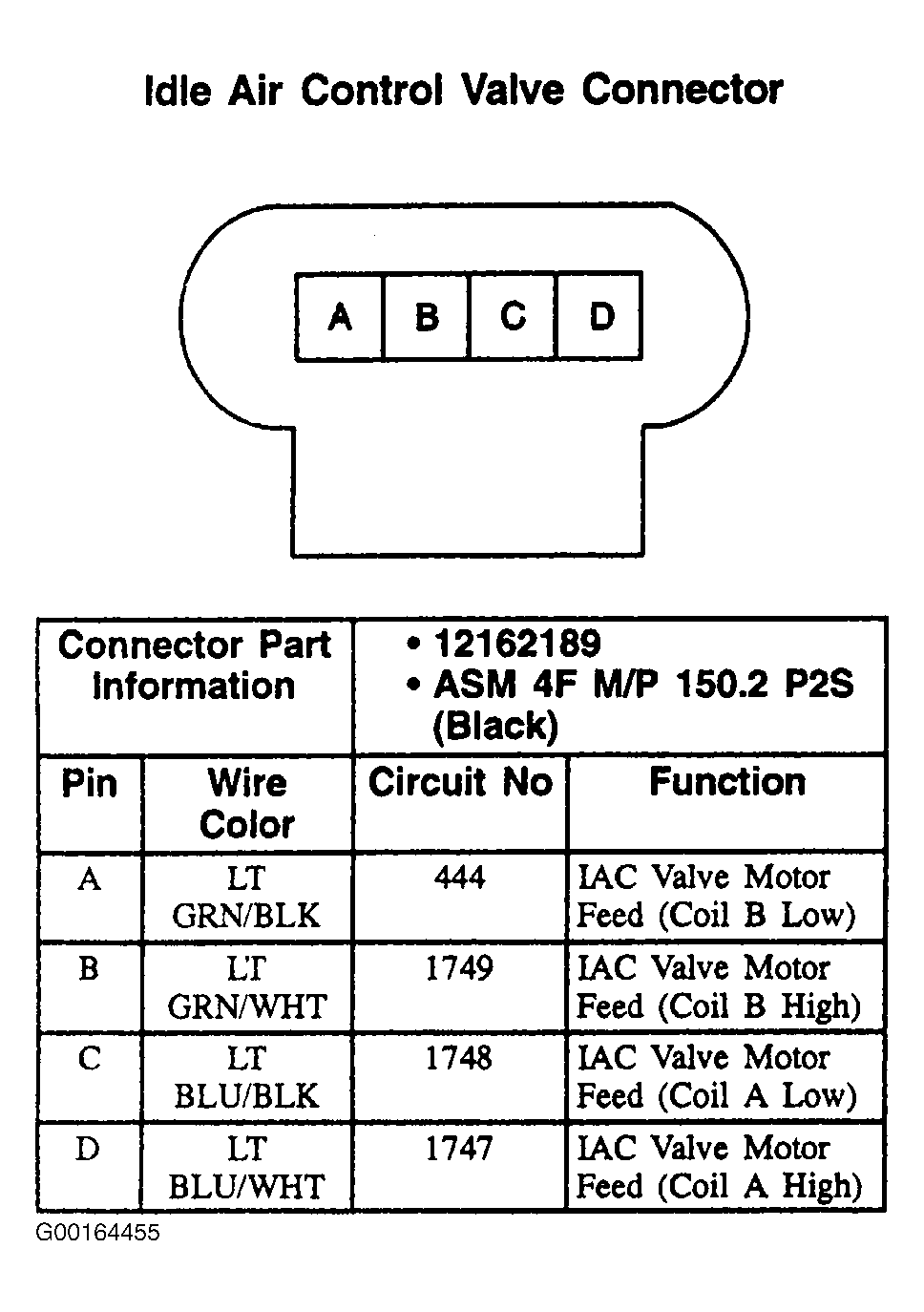

Fig 1: Idle Air Control Valve - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
