Connector Terminal Identification (G Series)
›
Ignition Coil
Ignition Coil

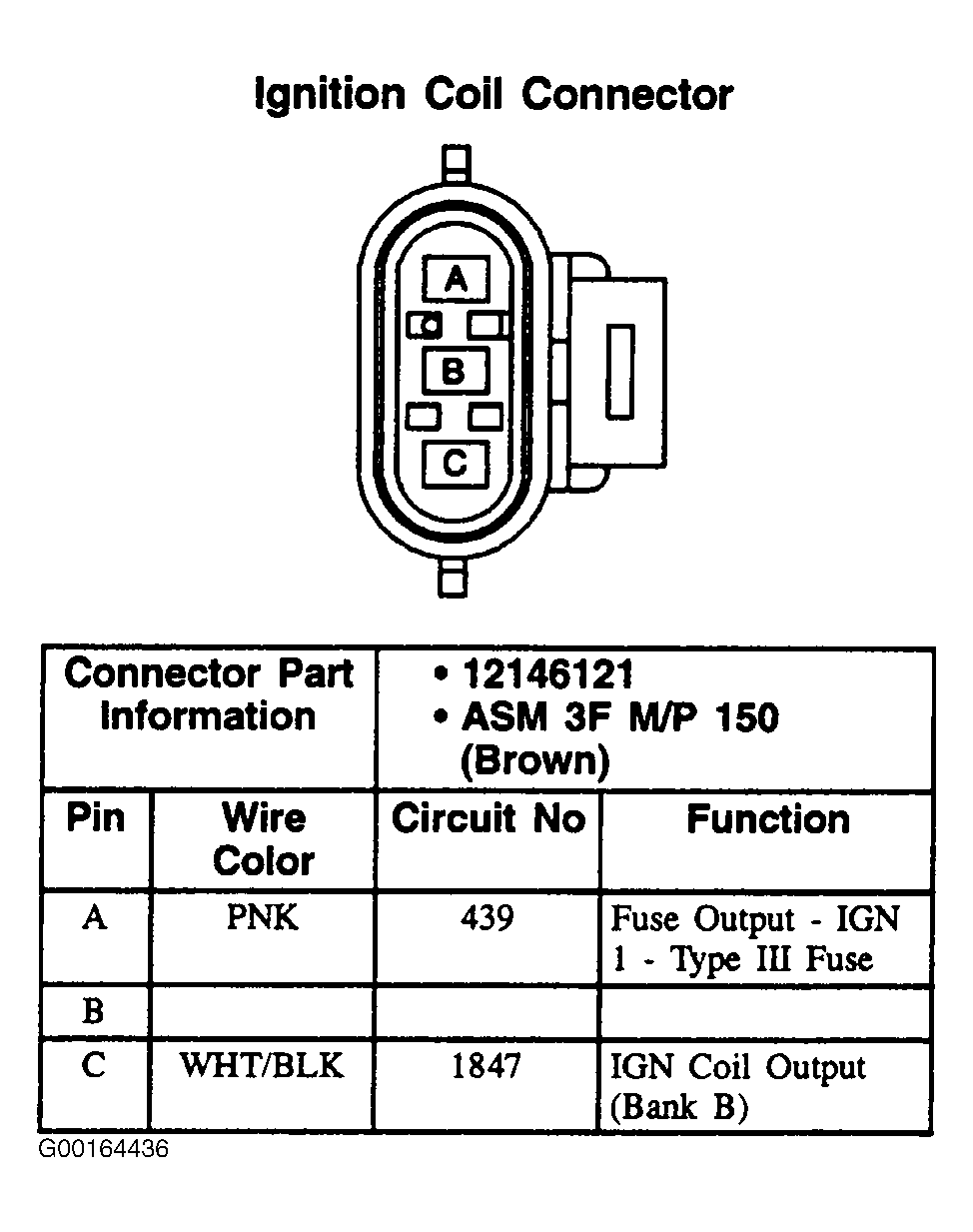

Fig 1: Ignition Coil - 3-Pin Connector, Brown
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
