Illuminated Entry Module

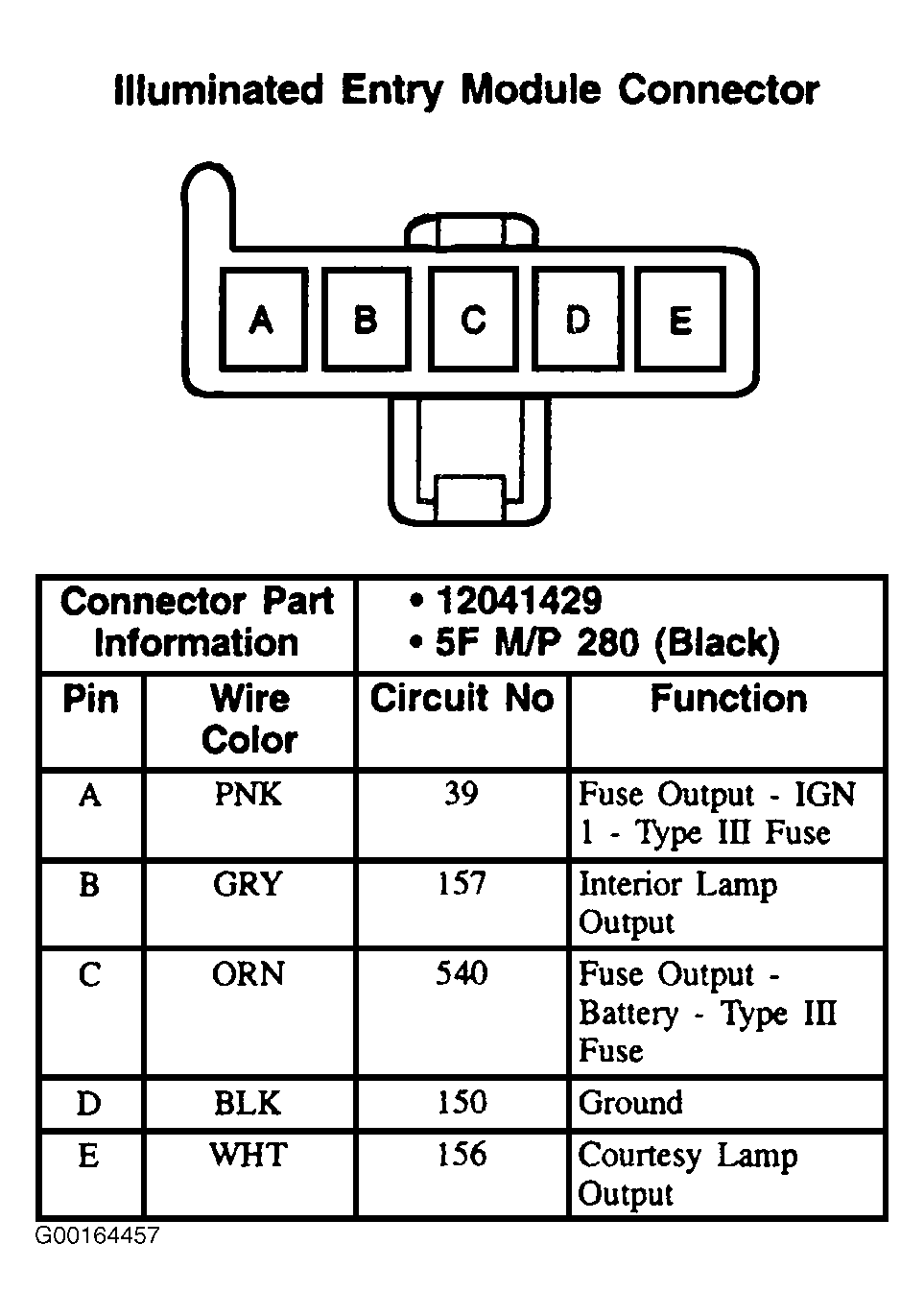

Fig 1: Illuminated Entry Module - 5-Pin Connector, Black
G00164457Courtesy of GENERAL MOTORS CORP.
