Inflatable Restraint Front End Discriminating Sensor

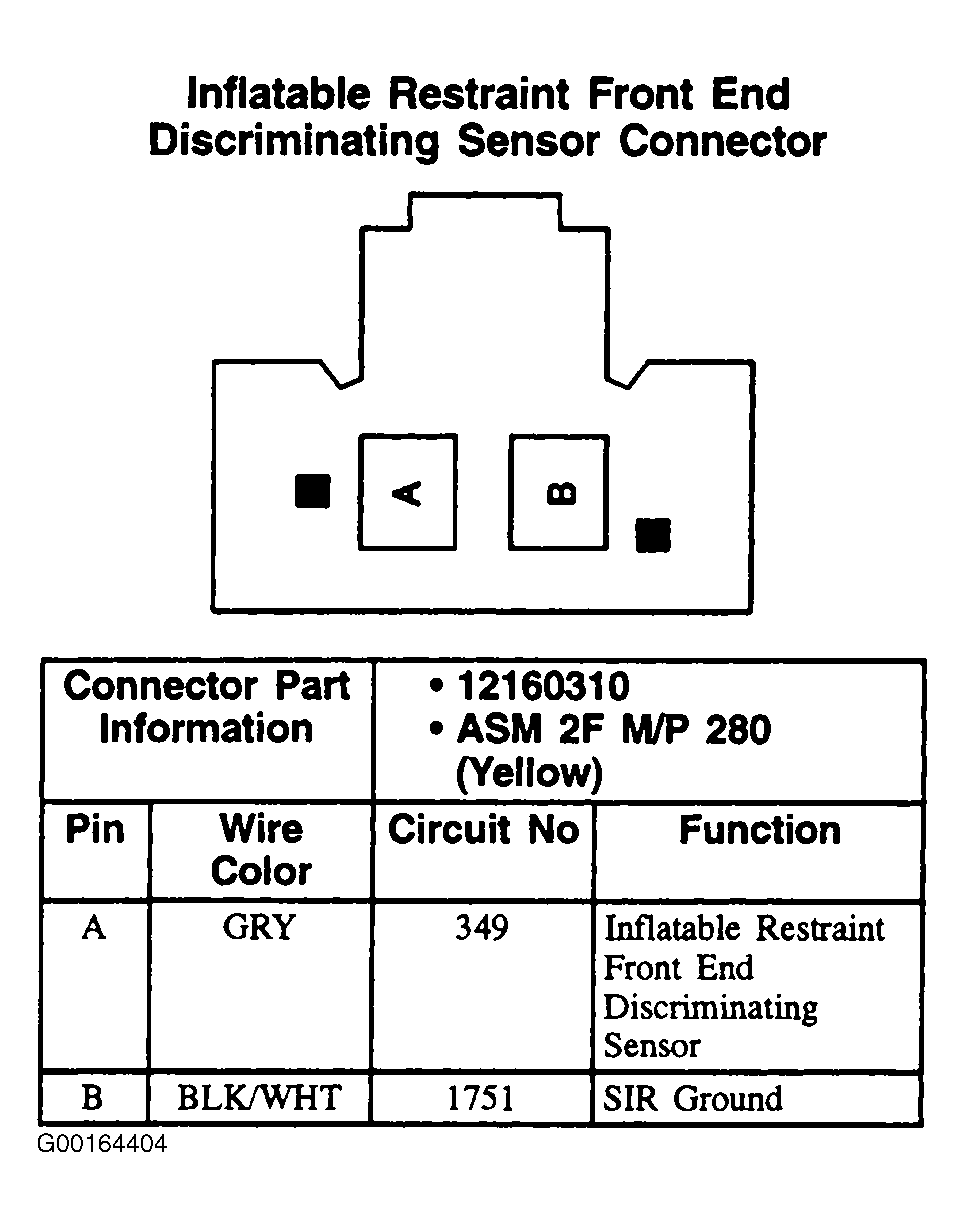

Fig 1: Inflatable Restraint Front End Discriminating Sensor - 2-Pin Connector, Yellow
G00164404Courtesy of GENERAL MOTORS CORP.
