Connector Terminal Identification (G Series)
›
Inflatable Restraint Sensing & Diagnostic Module
Inflatable Restraint Sensing & Diagnostic Module

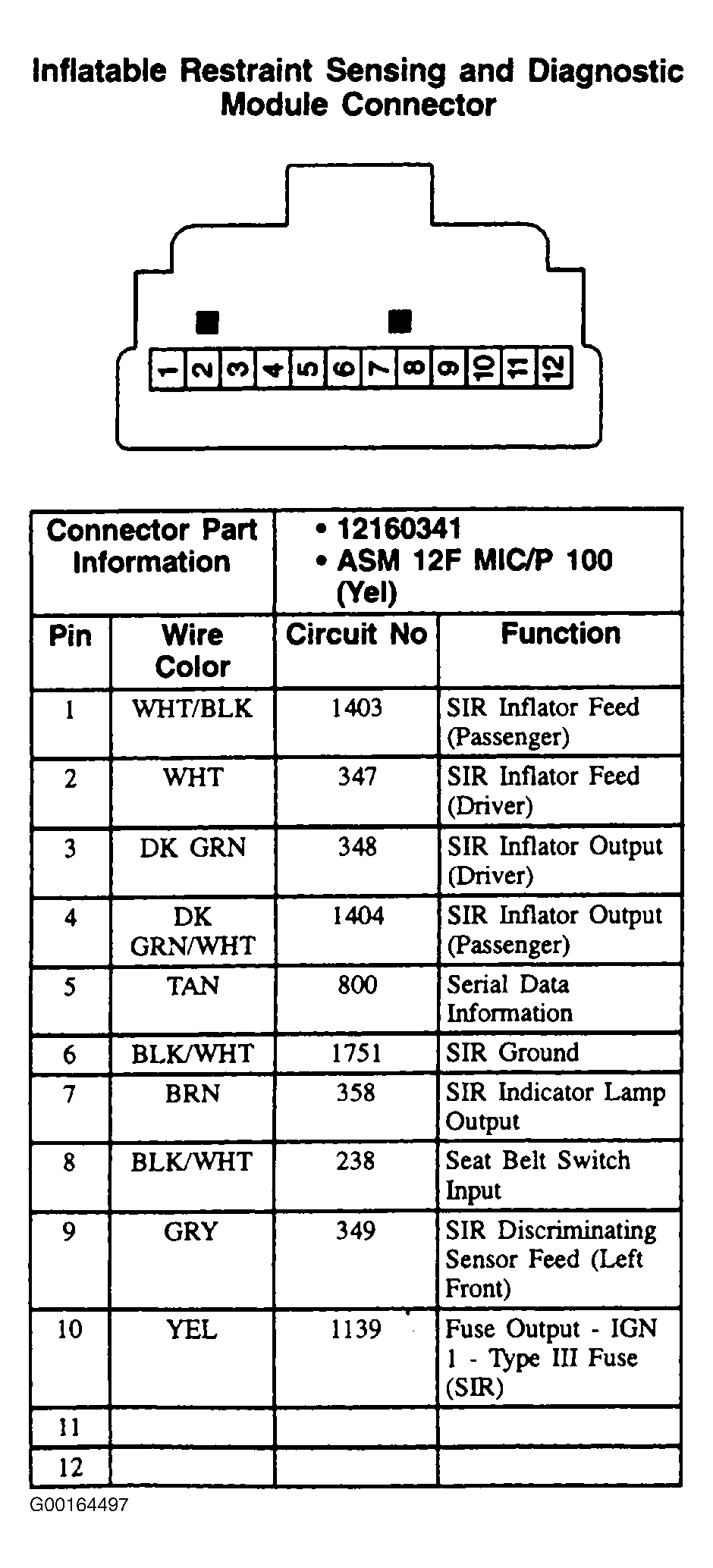

Fig 1: Inflatable Restraint Sensing & Diagnostic Module - 12-Pin Connector, Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
