Instrument Panel Fuse Block

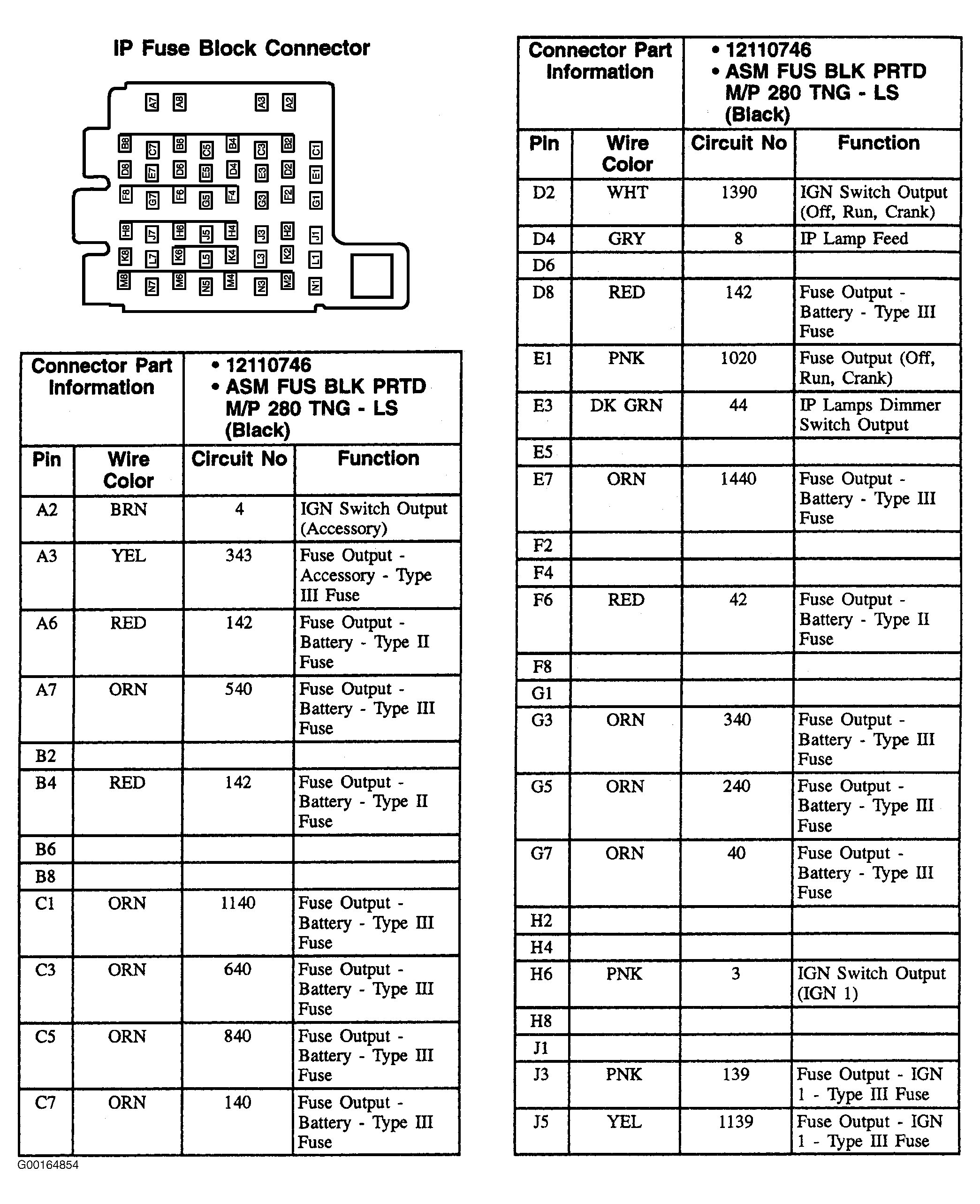

Fig 1: Instrument Panel Fuse Block - 52-Pin Connector, Black (1 Of 2)
G00164854Courtesy of GENERAL MOTORS CORP.

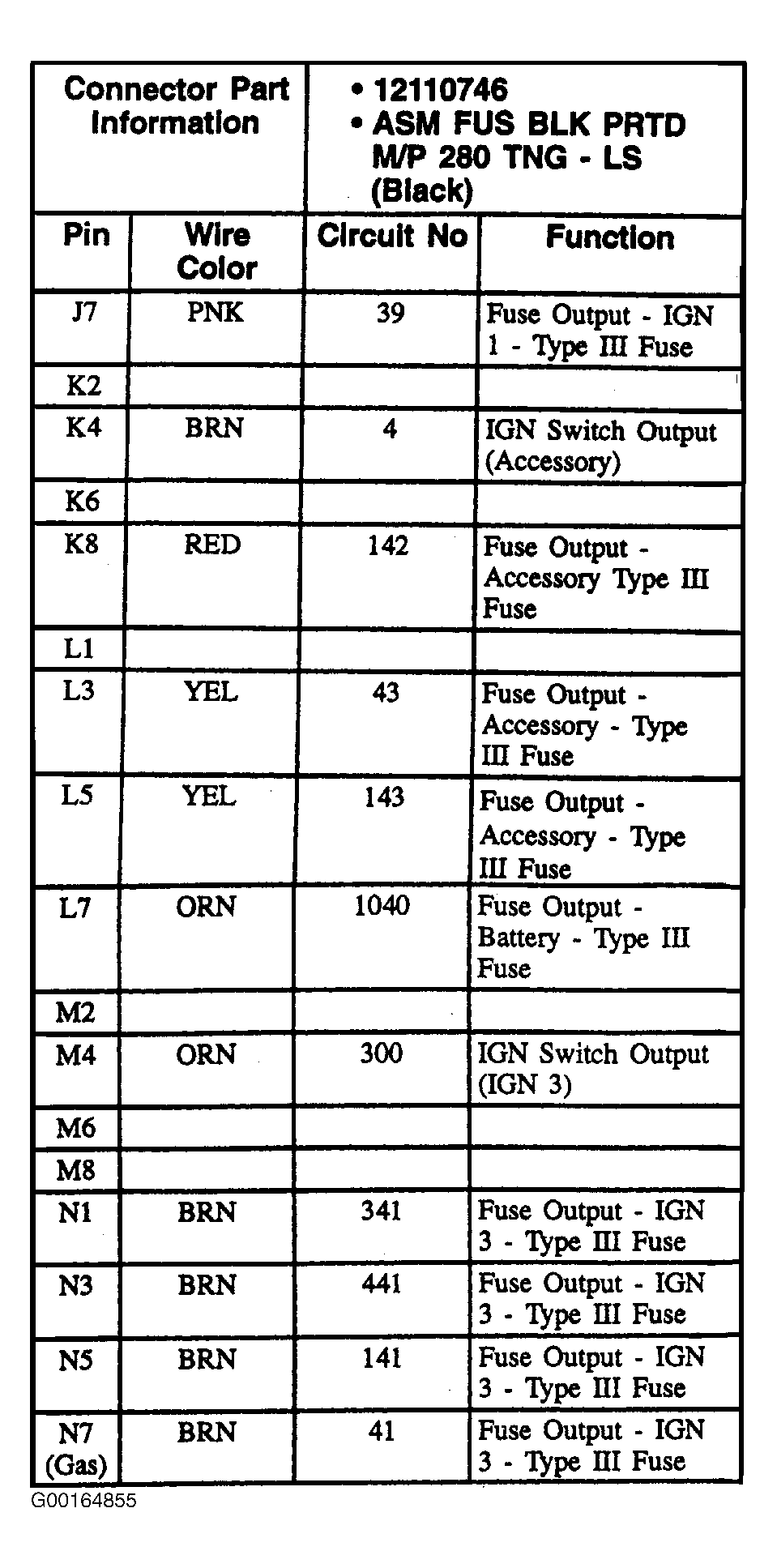

Fig 2: Instrument Panel Fuse Block - 52-Pin Connector, Black (2 Of 2)
G00164855Courtesy of GENERAL MOTORS CORP.
