Connector Terminal Identification (G Series)
›
Low Engine Coolant Level Indicator Connectors
›
Low Engine Coolant Level Indicator Module (Diesel)
Low Engine Coolant Level Indicator Module (Diesel)

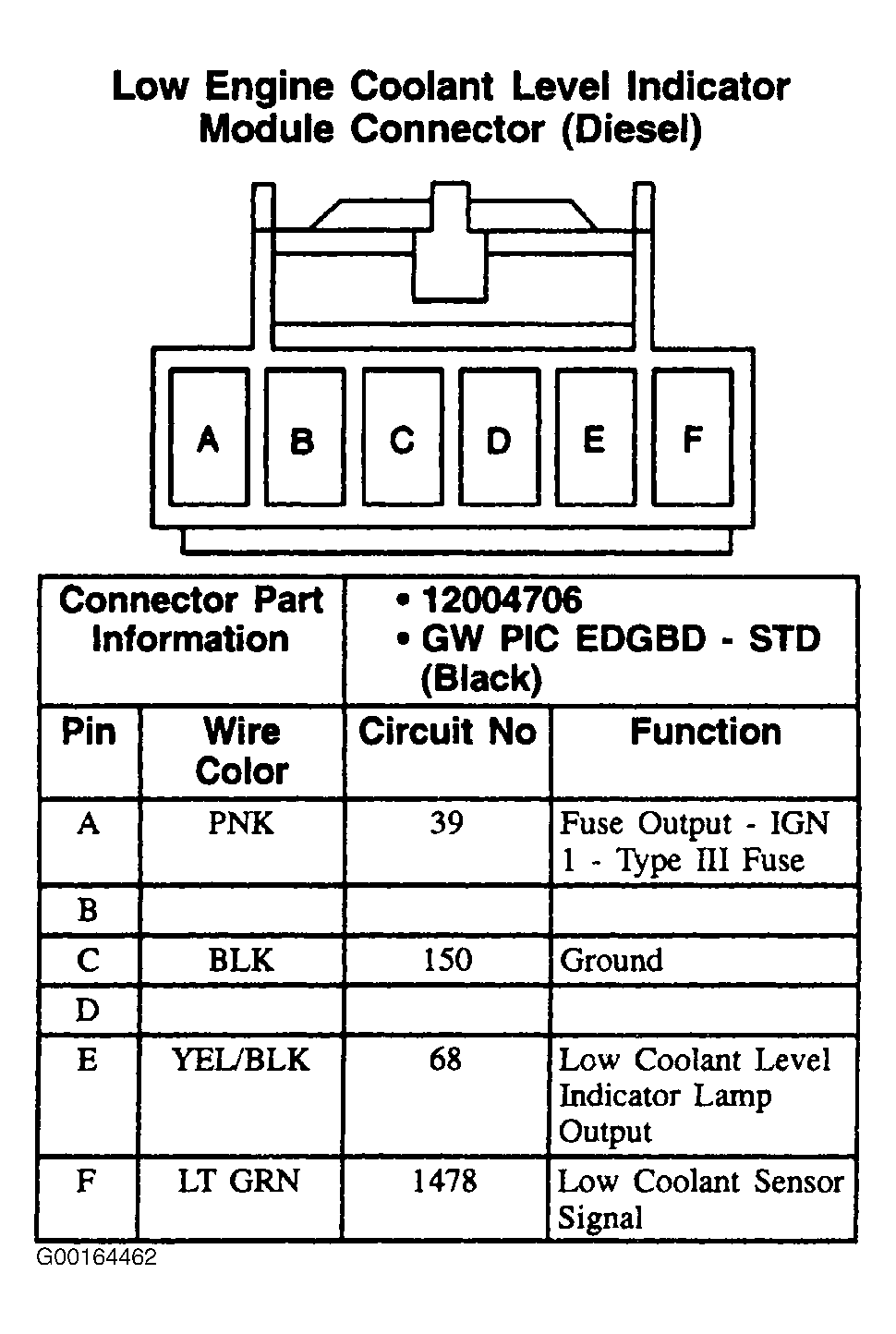

Fig 1: Low Engine Coolant Level Indicator Module (Diesel) - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
