Connector Terminal Identification (G Series)
›
Optical Fuel Temperature Sensor (Diesel)
Optical Fuel Temperature Sensor (Diesel)

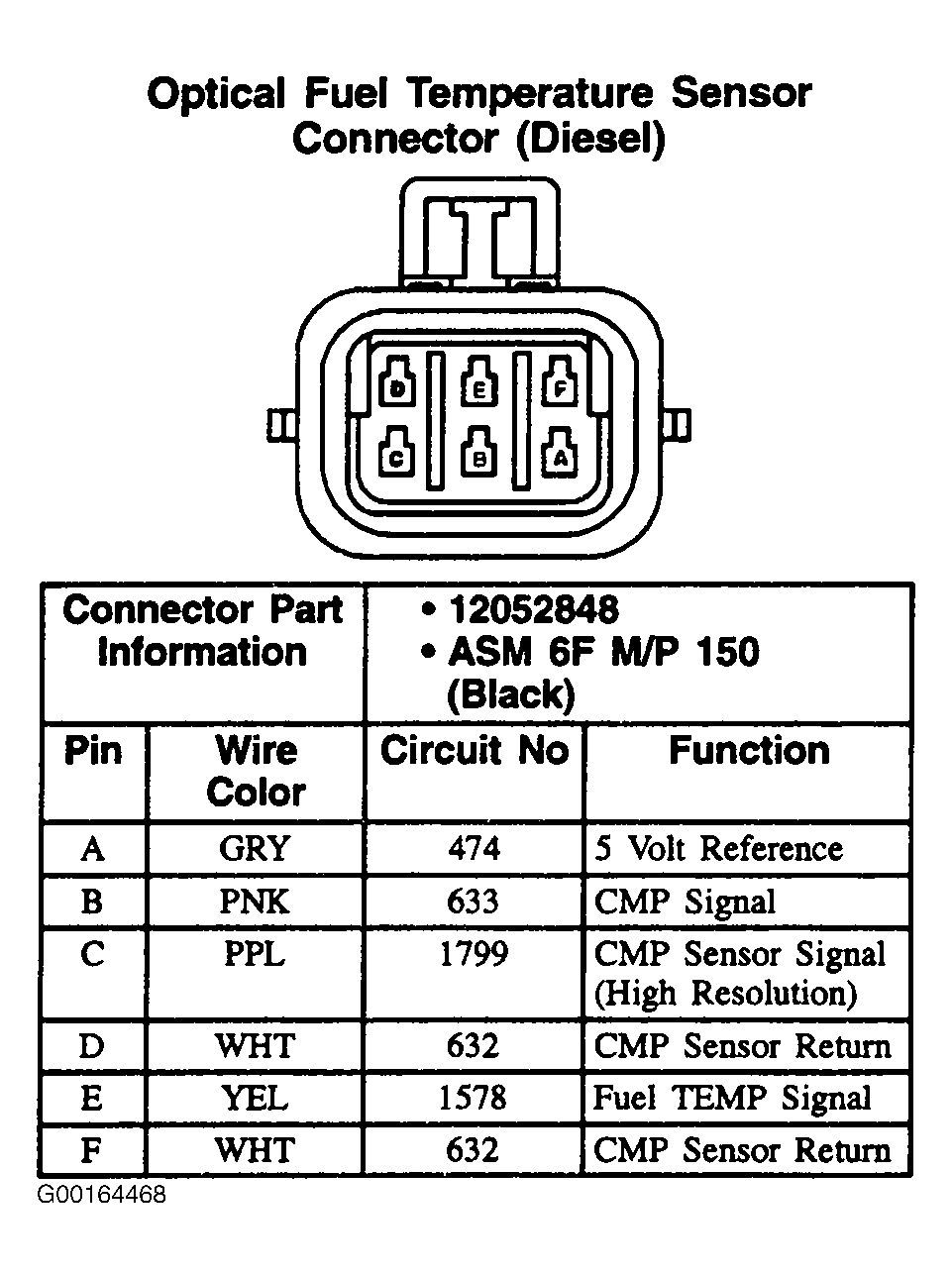

Fig 1: Optical Fuel Temperature Sensor (Diesel) - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
