Connector Terminal Identification (G Series)
›
Power Antenna Assembly
Power Antenna Assembly

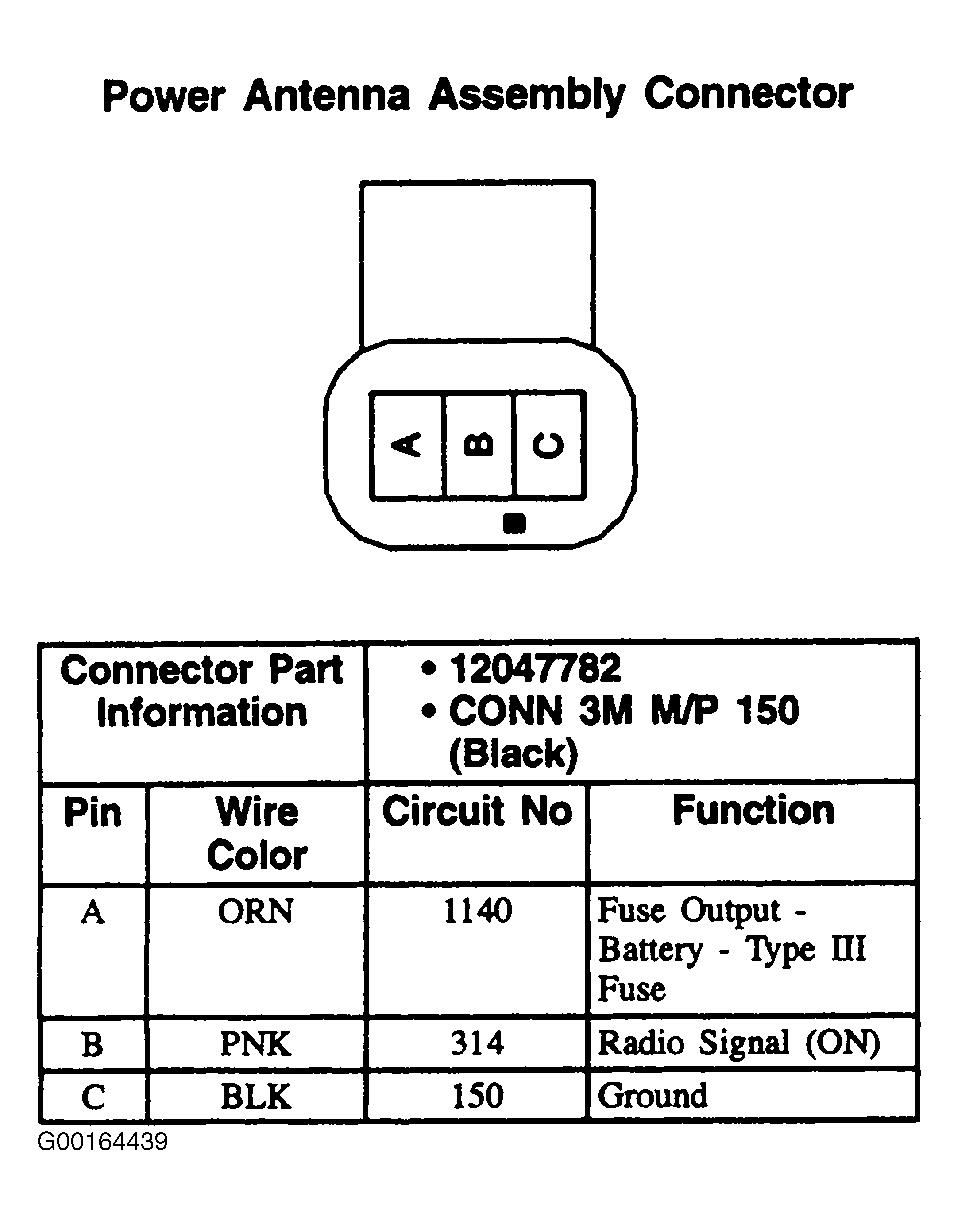

Fig 1: Power Antenna Assembly - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
