Connector Terminal Identification (G Series)
›
Power Door Lock Connectors
›
Power Door Lock Control Module
Power Door Lock Control Module

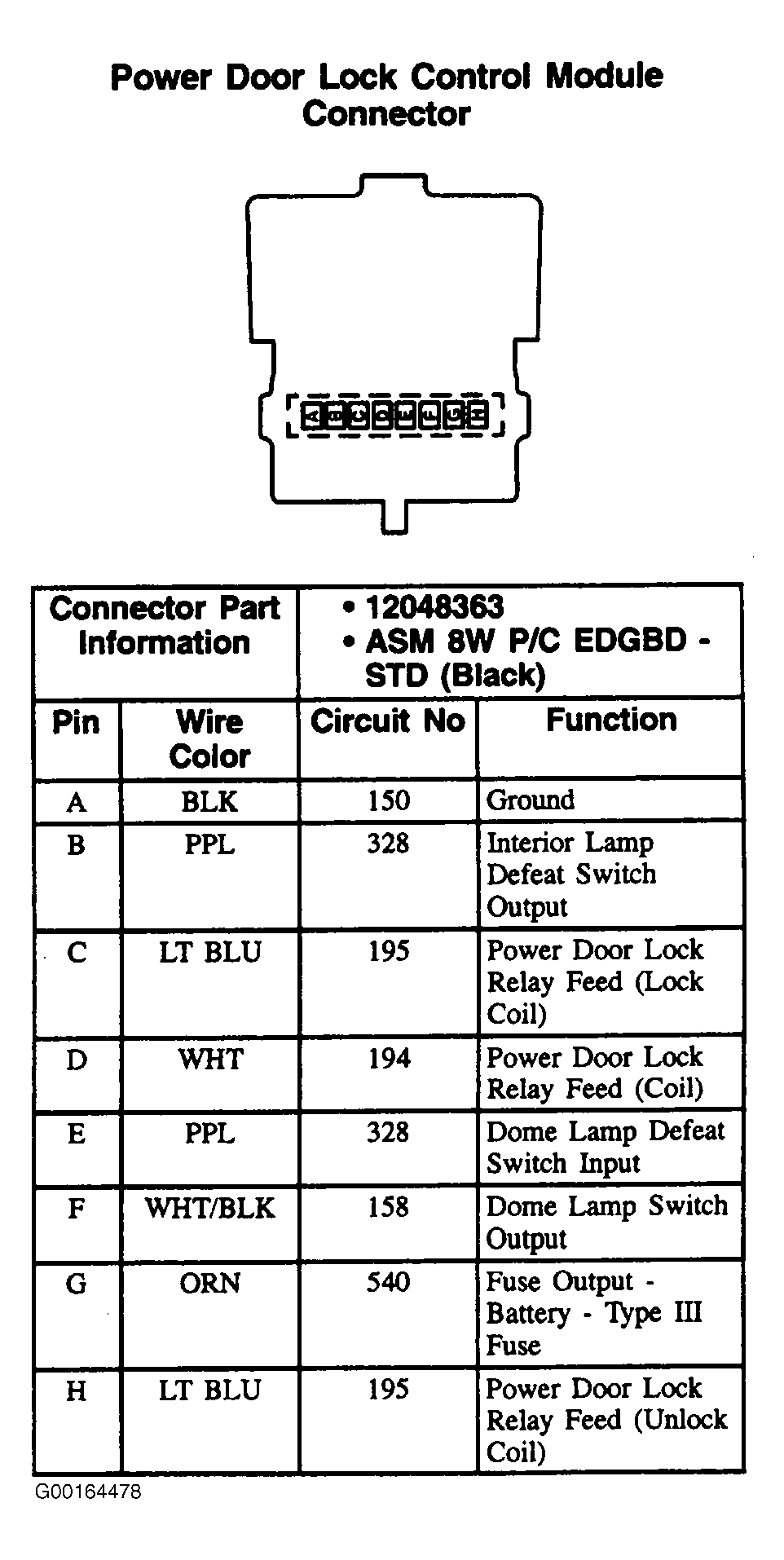

Fig 1: Power Door Lock Control Module - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
