Connector Terminal Identification (G Series)
›
Power Steering Control Module
Power Steering Control Module

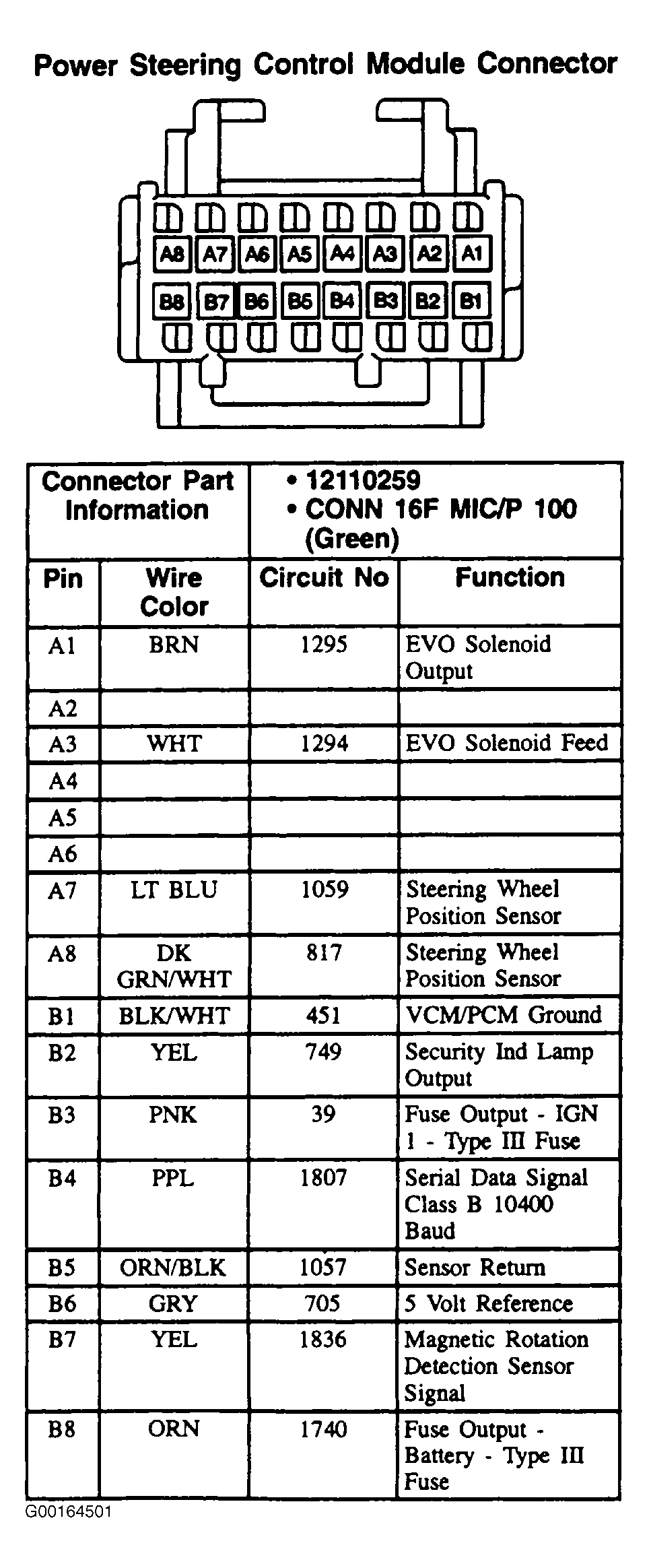

Fig 1: Power Steering Control Module - 16-Pin Connector, Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
