Connector Terminal Identification (G Series)
›
Power Window Connectors
›
Power Window Regulator Motor
Power Window Regulator Motor

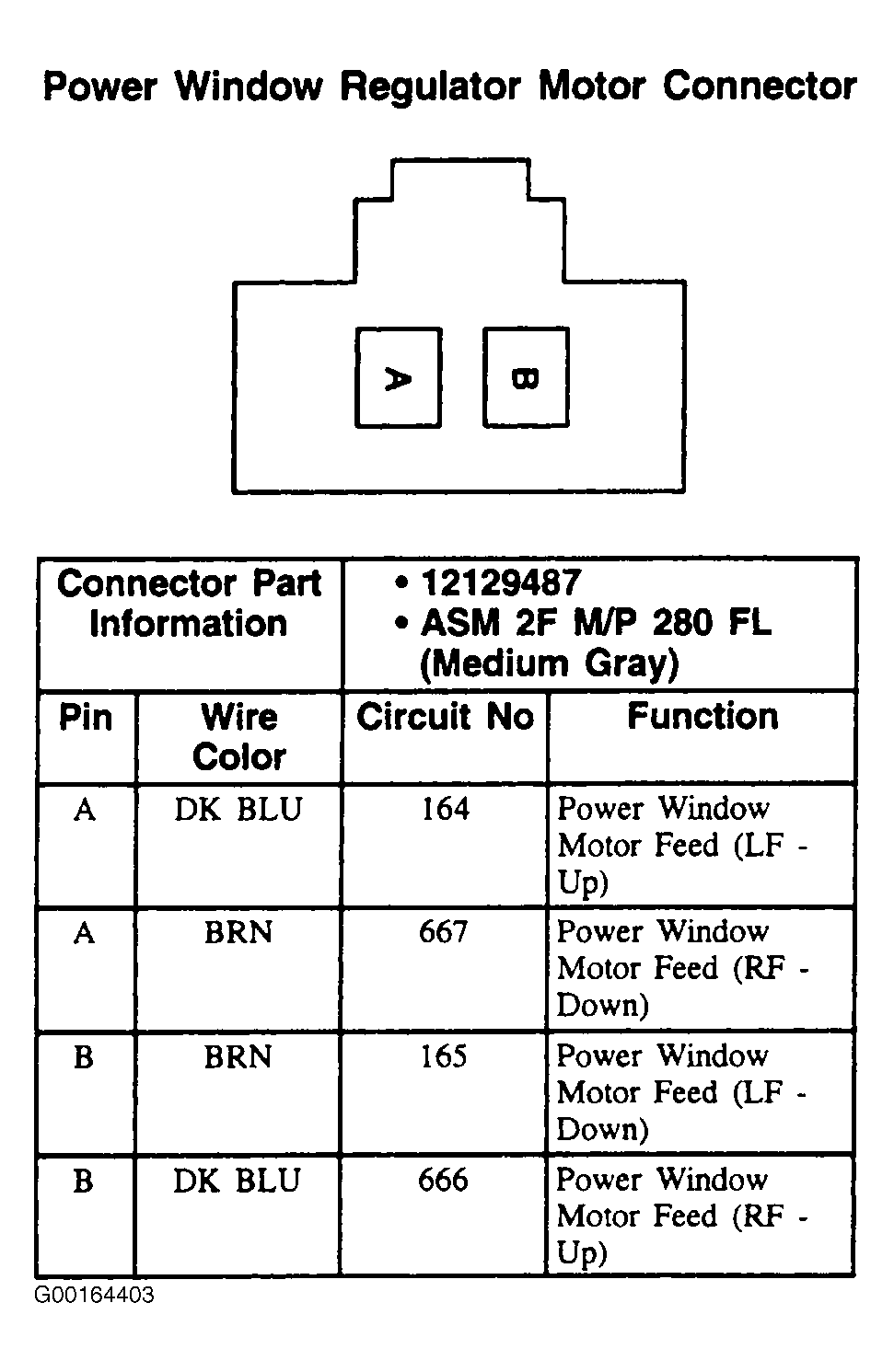

Fig 1: Power Window Regulator Motor - 2-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
