Rear Auxiliary HVAC Control Module

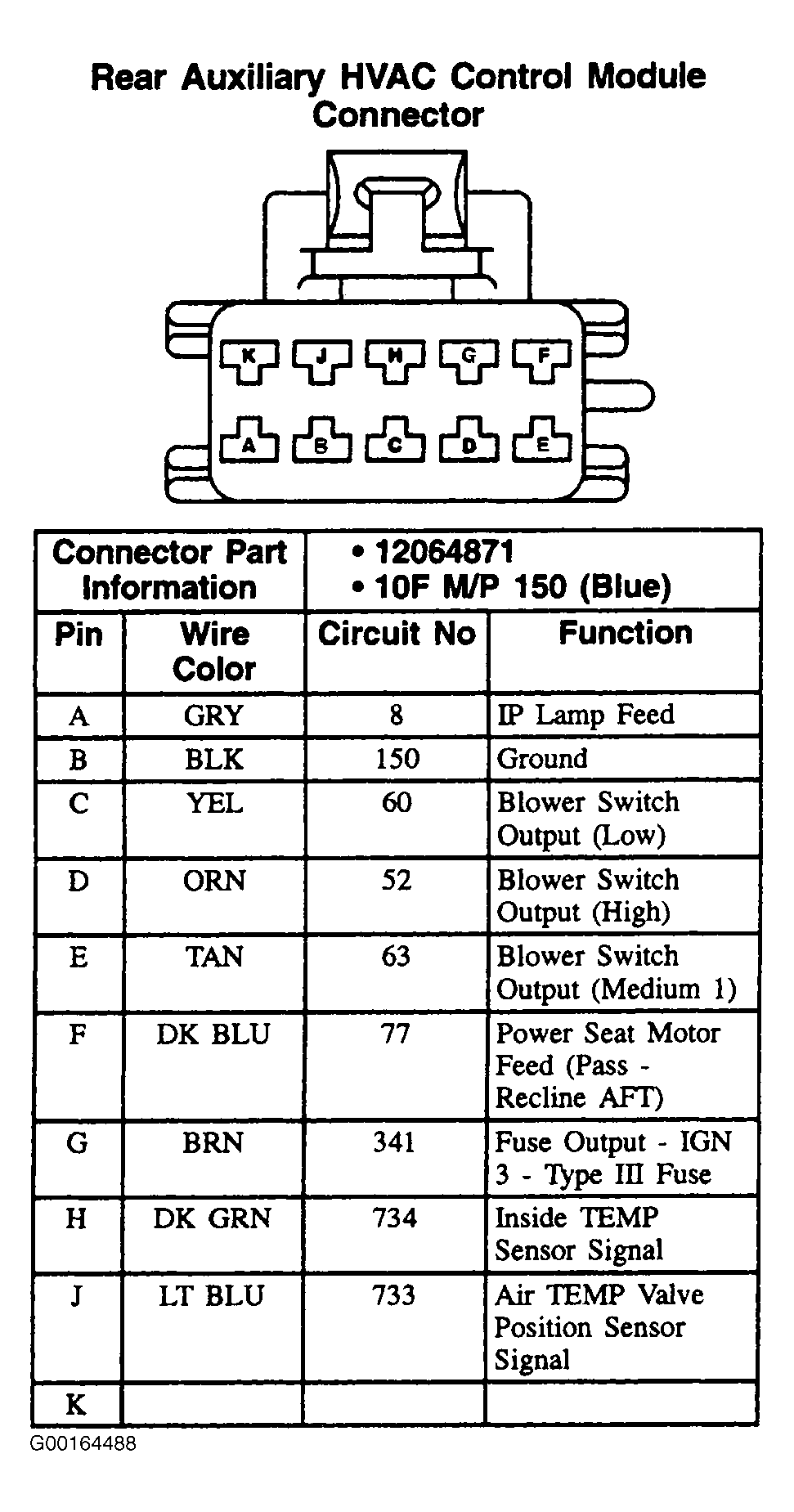

Fig 1: Rear Auxiliary HVAC Control Module - 10-Pin Connector, Blue
G00164488Courtesy of GENERAL MOTORS CORP.
