Remote Control Door Lock Receiver

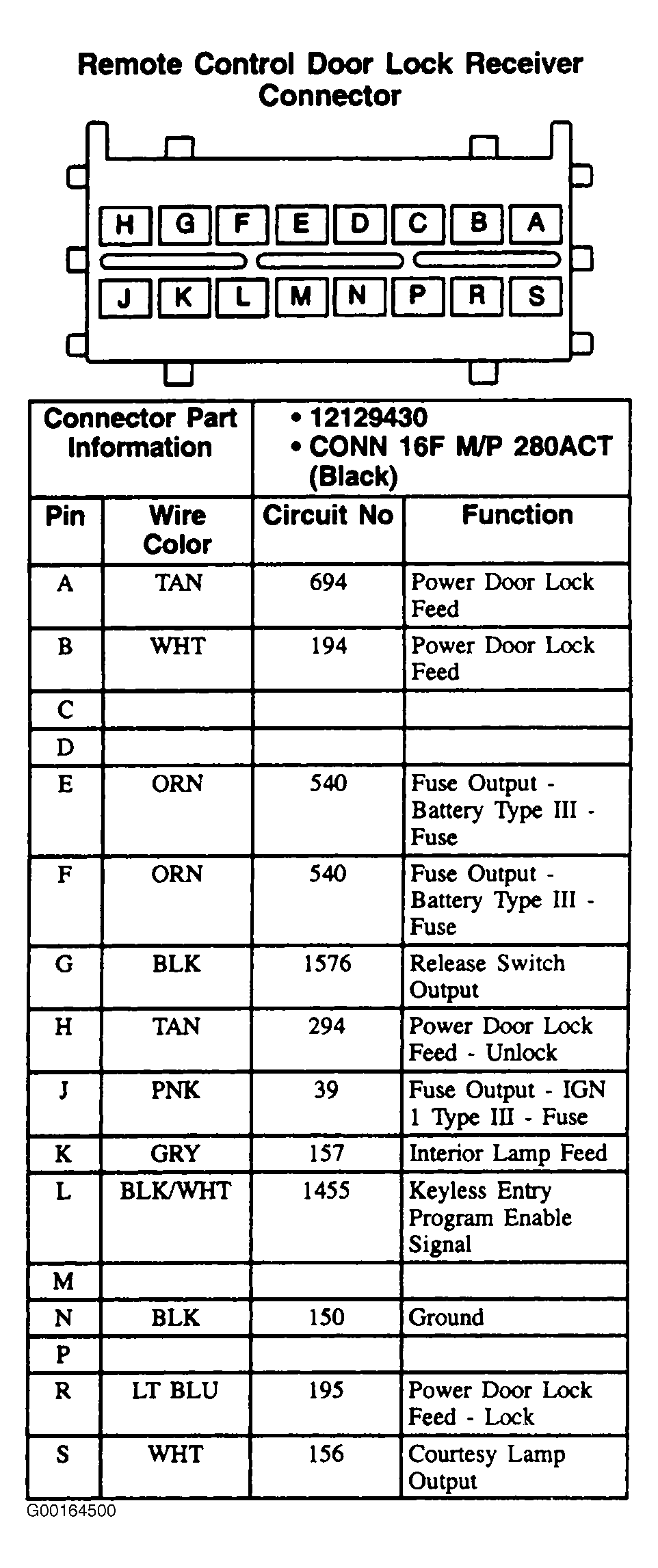

Fig 1: Remote Control Door Lock Receiver - 16-Pin Connector, Black
G00164500Courtesy of GENERAL MOTORS CORP.
