Connector Terminal Identification (G Series)
›
Throttle Position (TP) Sensor
Throttle Position (TP) Sensor

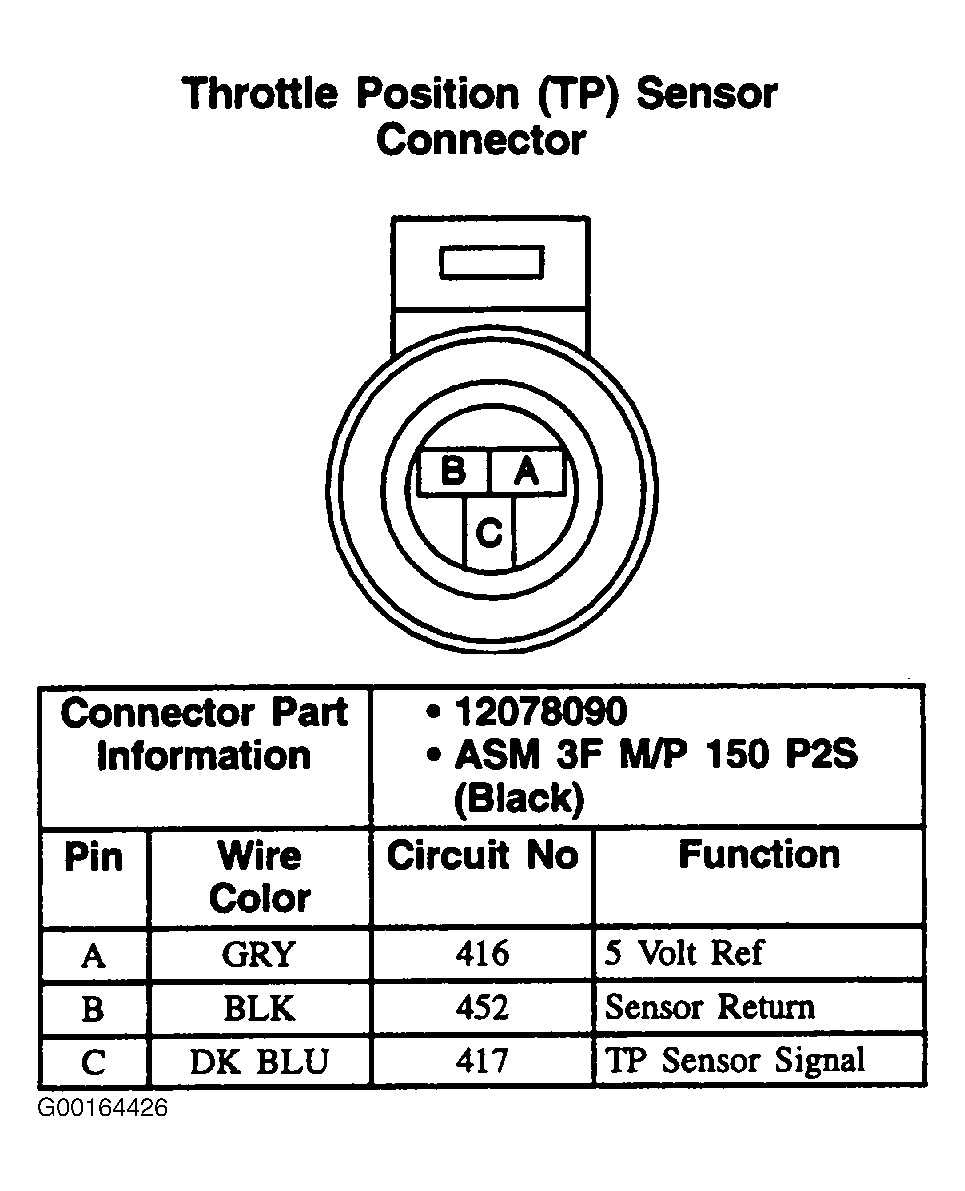

Fig 1: Throttle Position (TP) Sensor - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
