UPFITTER Provisions Relay

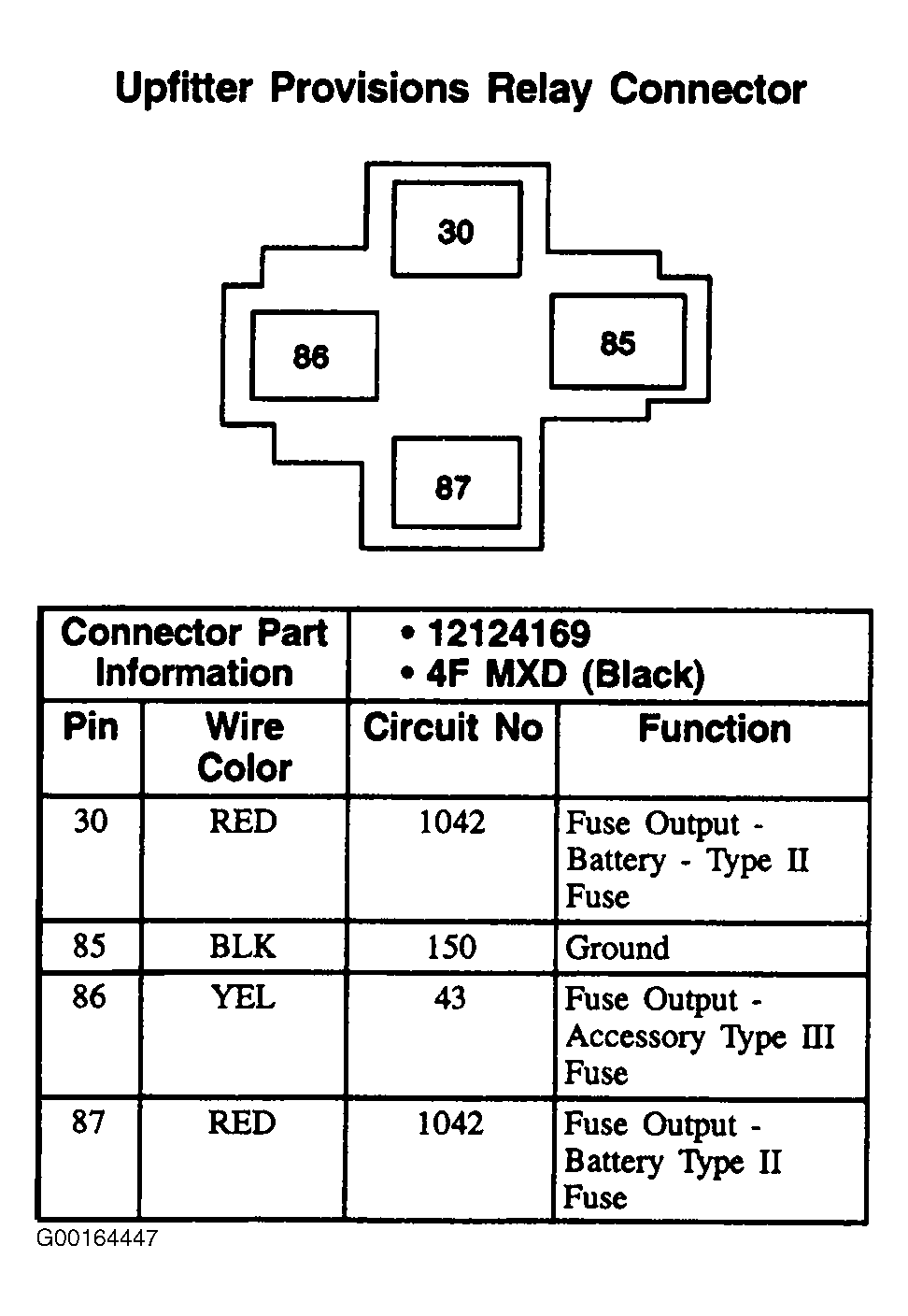

Fig 1: Upfitter Provisions Relay - 4-Pin Connector, Black
G00164447Courtesy of GENERAL MOTORS CORP.
