Manifold Absolute Pressure (Map) Sensor

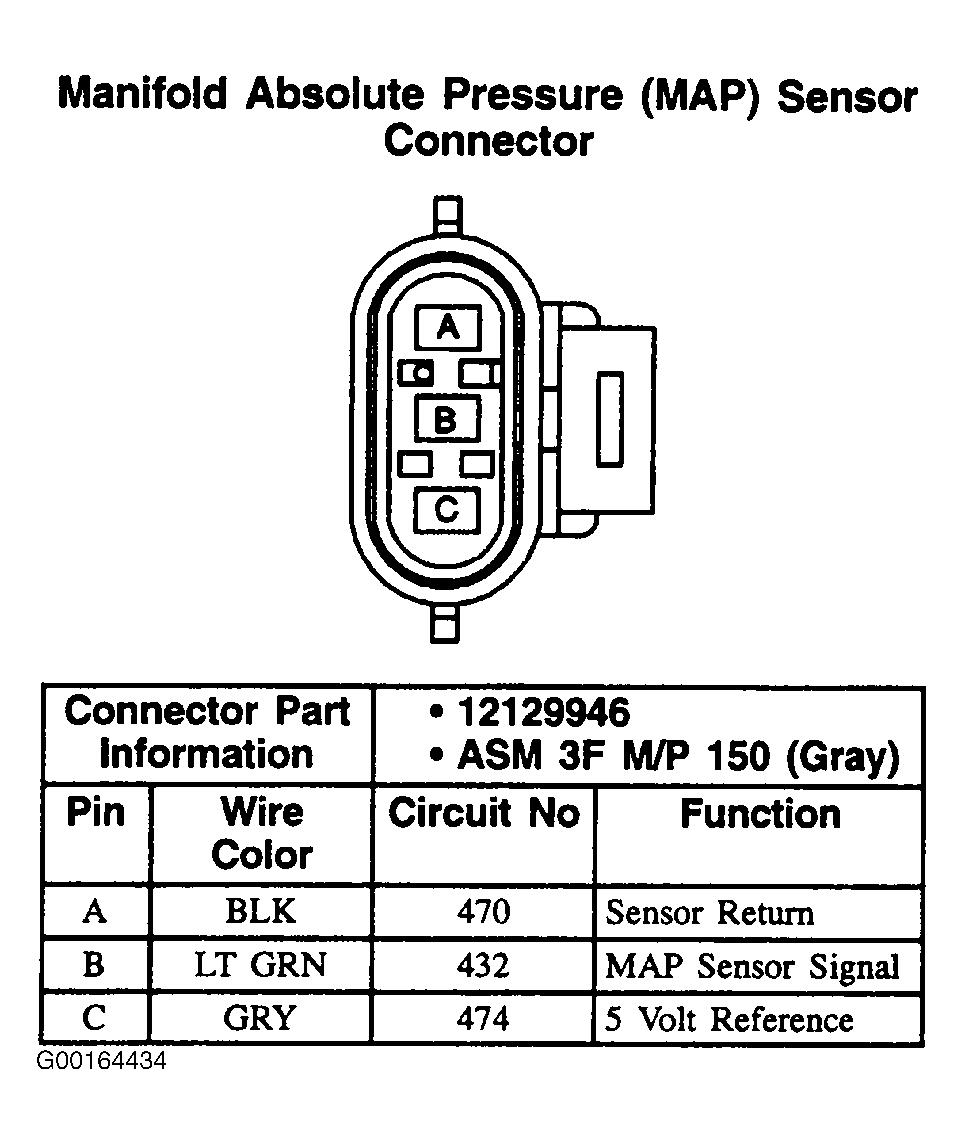

Fig 1: Manifold Absolute Pressure (MAP) Sensor - 3-Pin Connector, Gray
G00164434Courtesy of GENERAL MOTORS CORP.
