Connector Terminal Identification
›
A/C Compressor Clutch
A/C Compressor Clutch

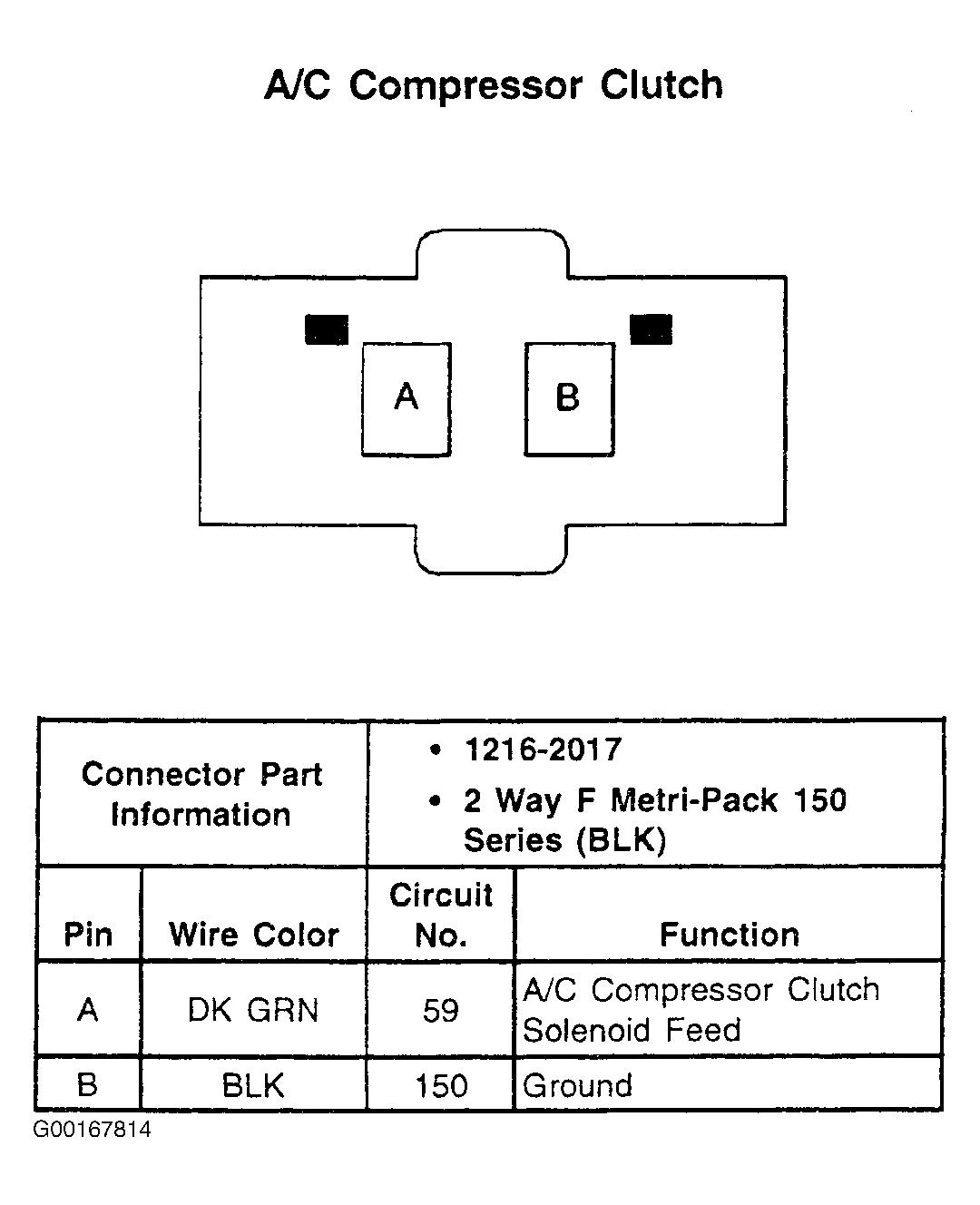

Fig 1: A/C Compressor Clutch - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
