Connector Terminal Identification
›
BOSE(R) Signal Processor
BOSE(R) Signal Processor

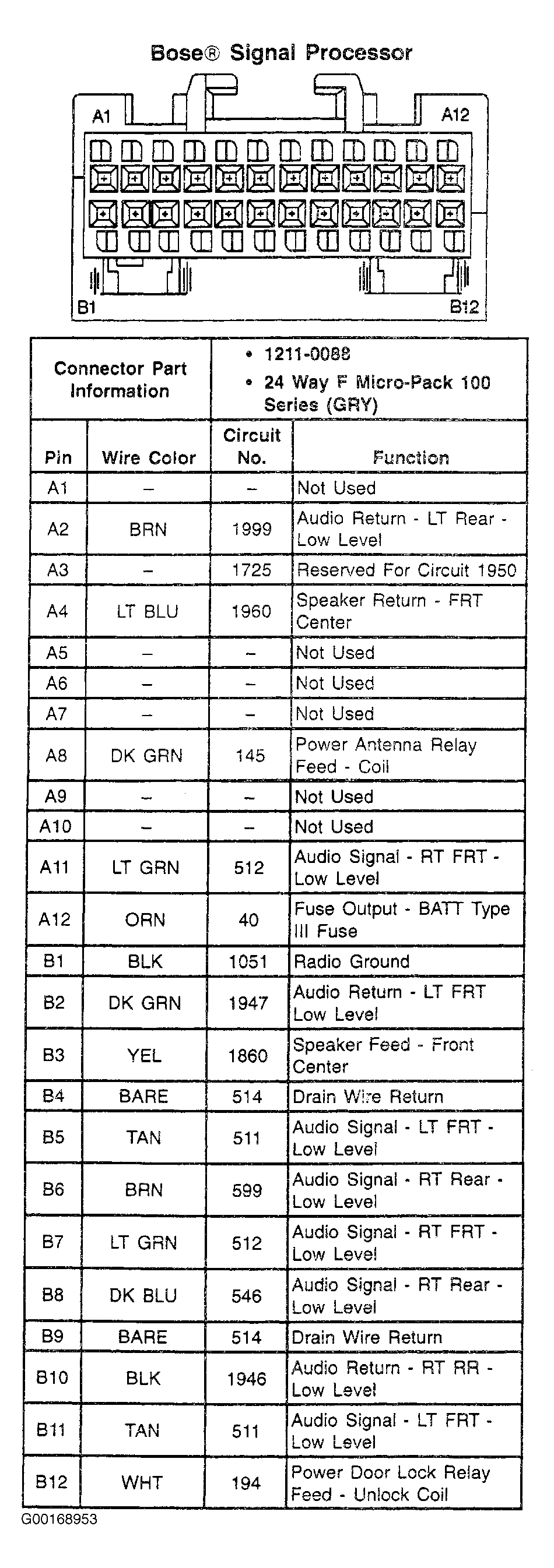

Fig 1: Bose(R) Signal Processor - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
