Home › Chevrolet › 1997 › Corvette Automatic › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Cigar Lighter

Cigar Lighter

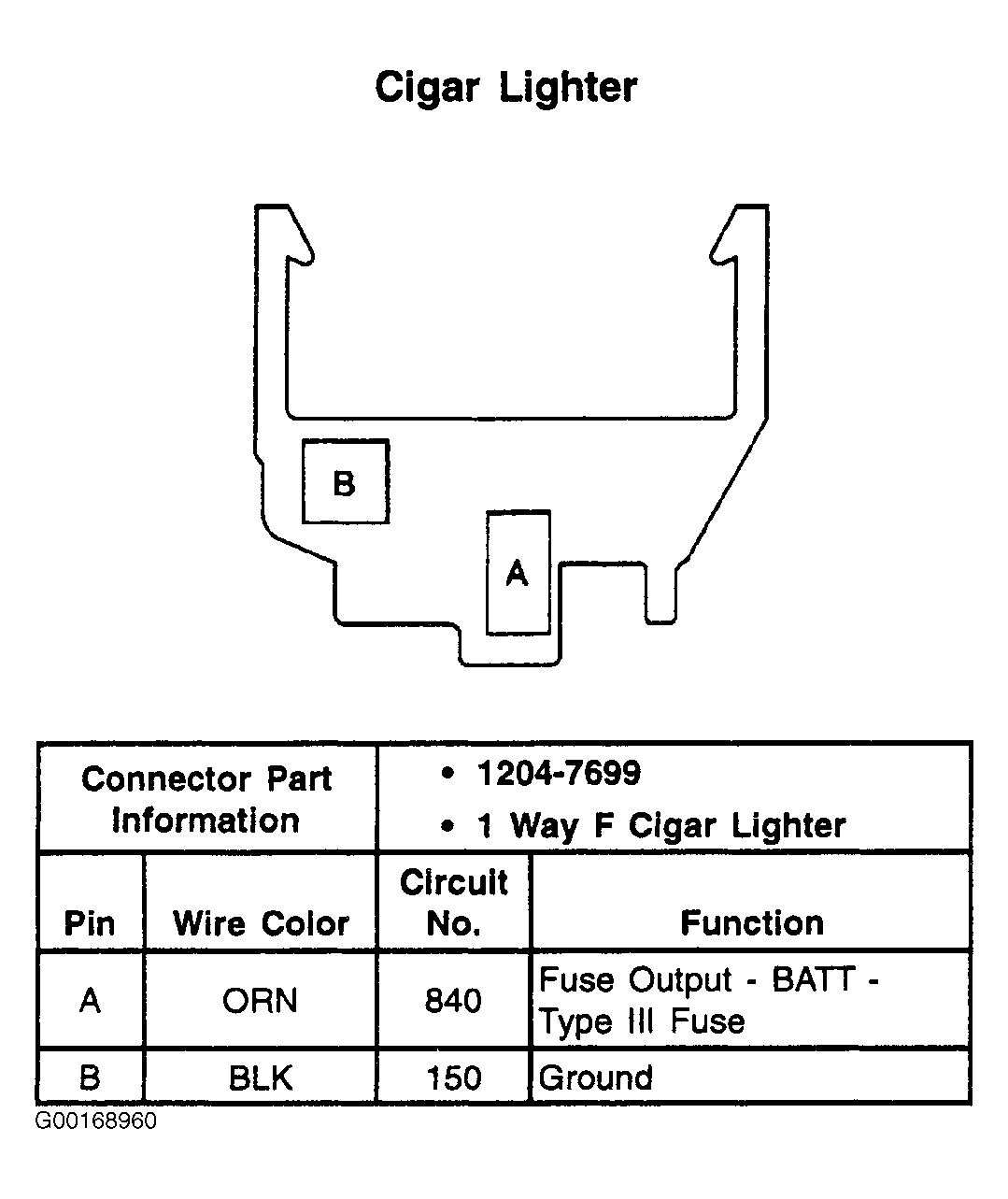

Fig 1: Cigar Lighter - 2-Pin Connector
G00168960Courtesy of GENERAL MOTORS CORP.
