Connector Terminal Identification
›
Clutch Switch
Clutch Switch

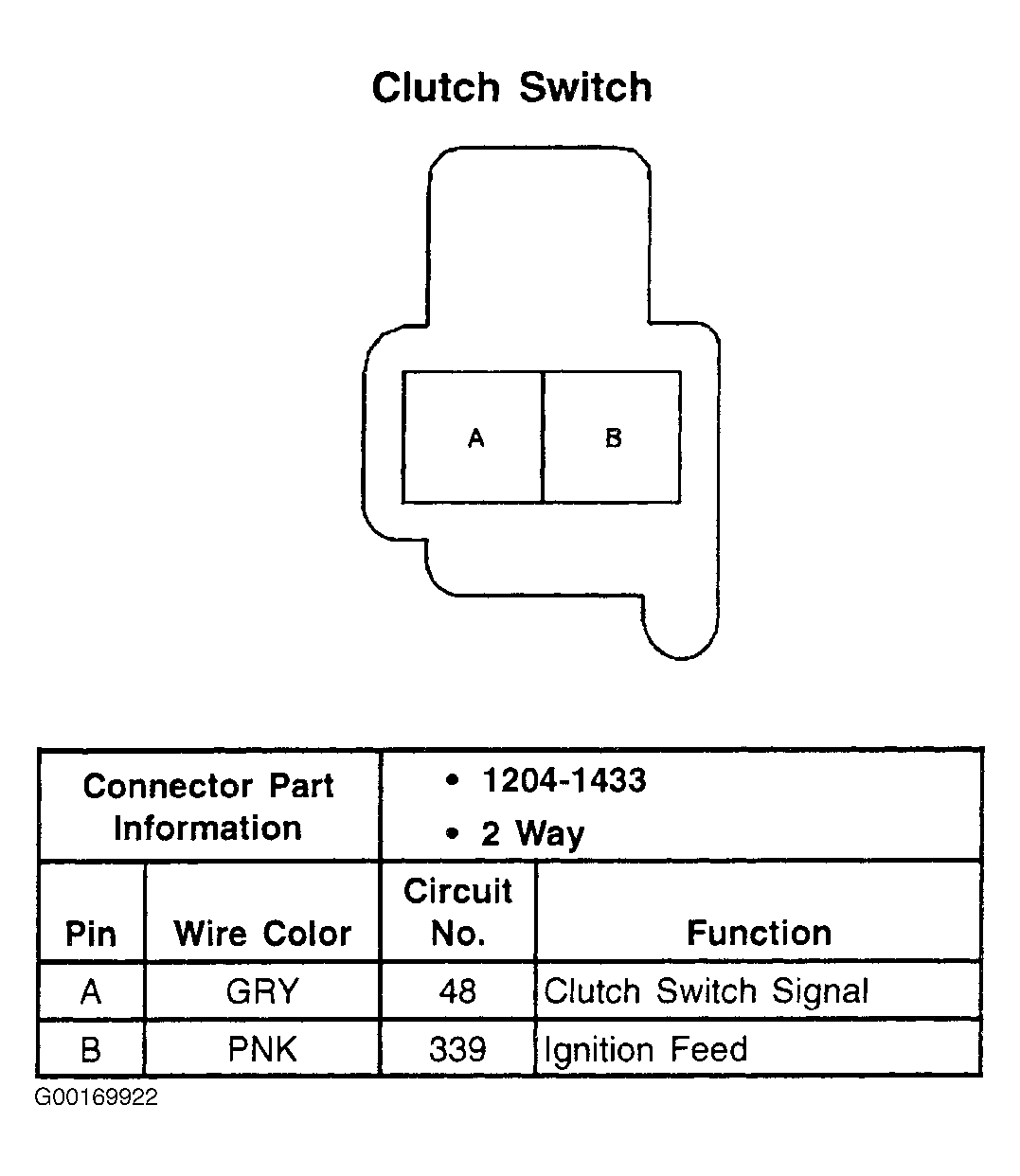

Fig 1: Clutch Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
