Compact Disk Player

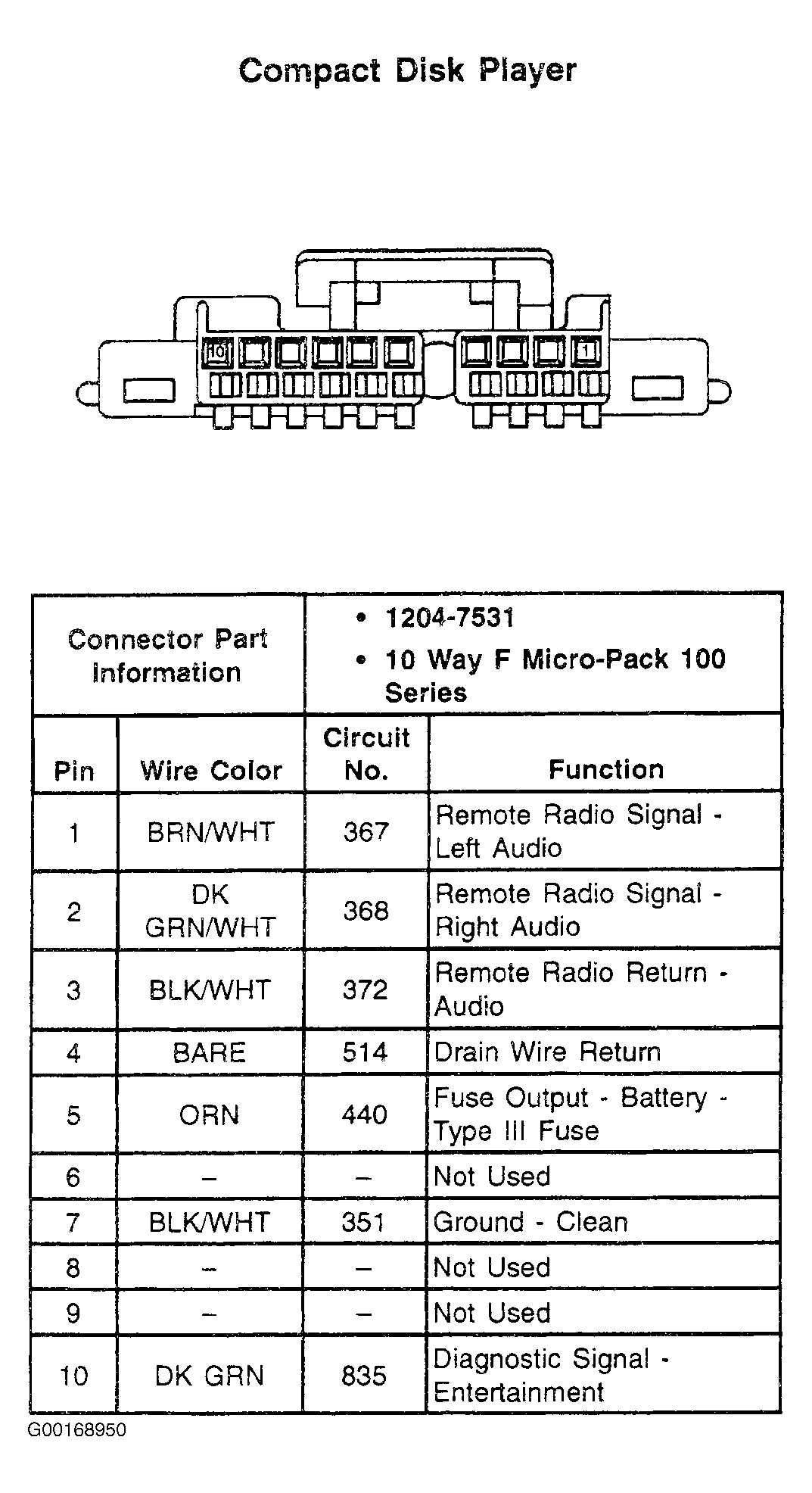

Fig 1: Compact Disk Player - 10-Pin Connector
G00168950Courtesy of GENERAL MOTORS CORP.
