Connector Terminal Identification
›
Engine Coolant Temperature Sensor
Engine Coolant Temperature Sensor

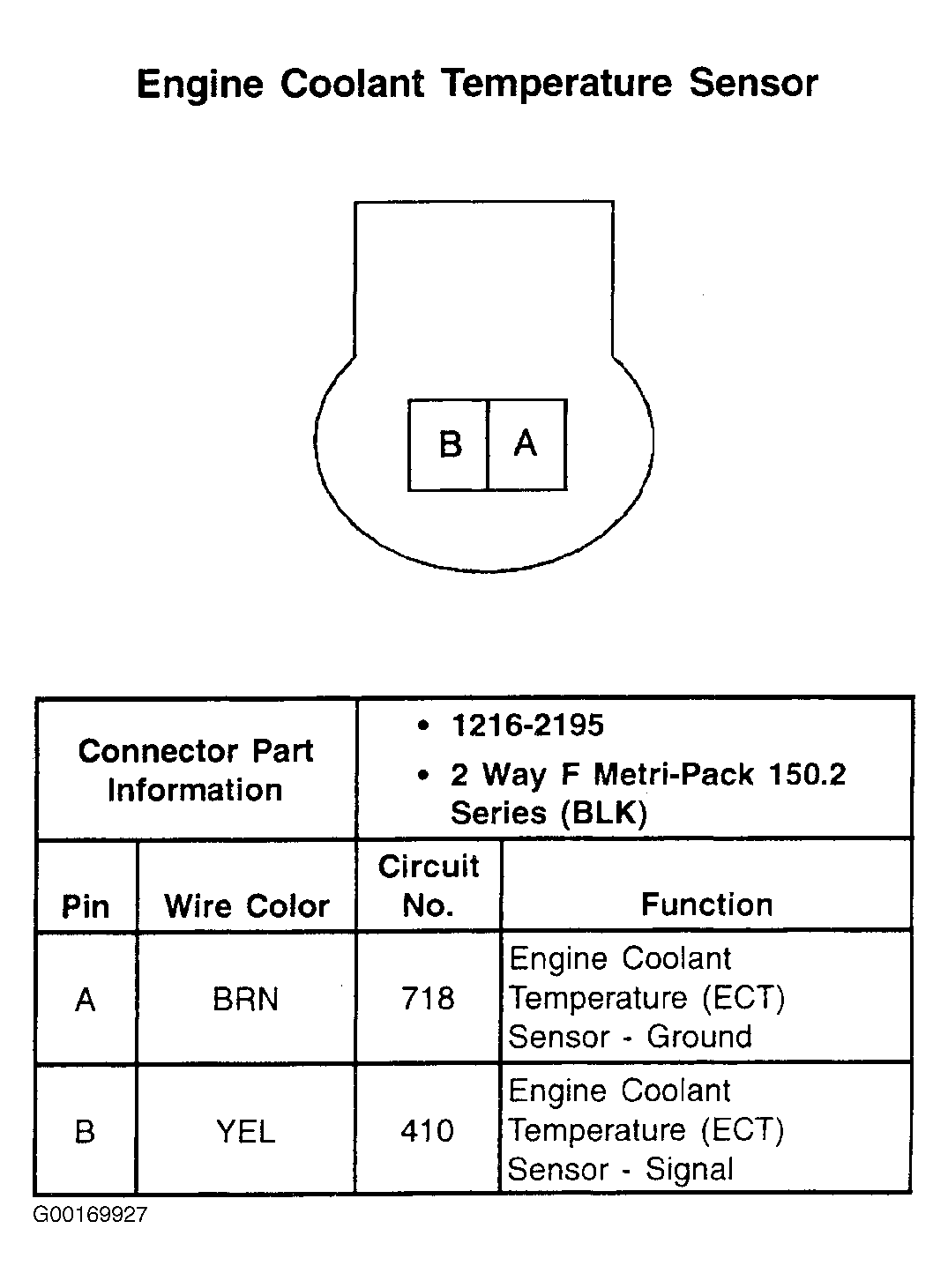

Fig 1: Engine Coolant Temperature Sensor - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
