Hazard Warning Switch

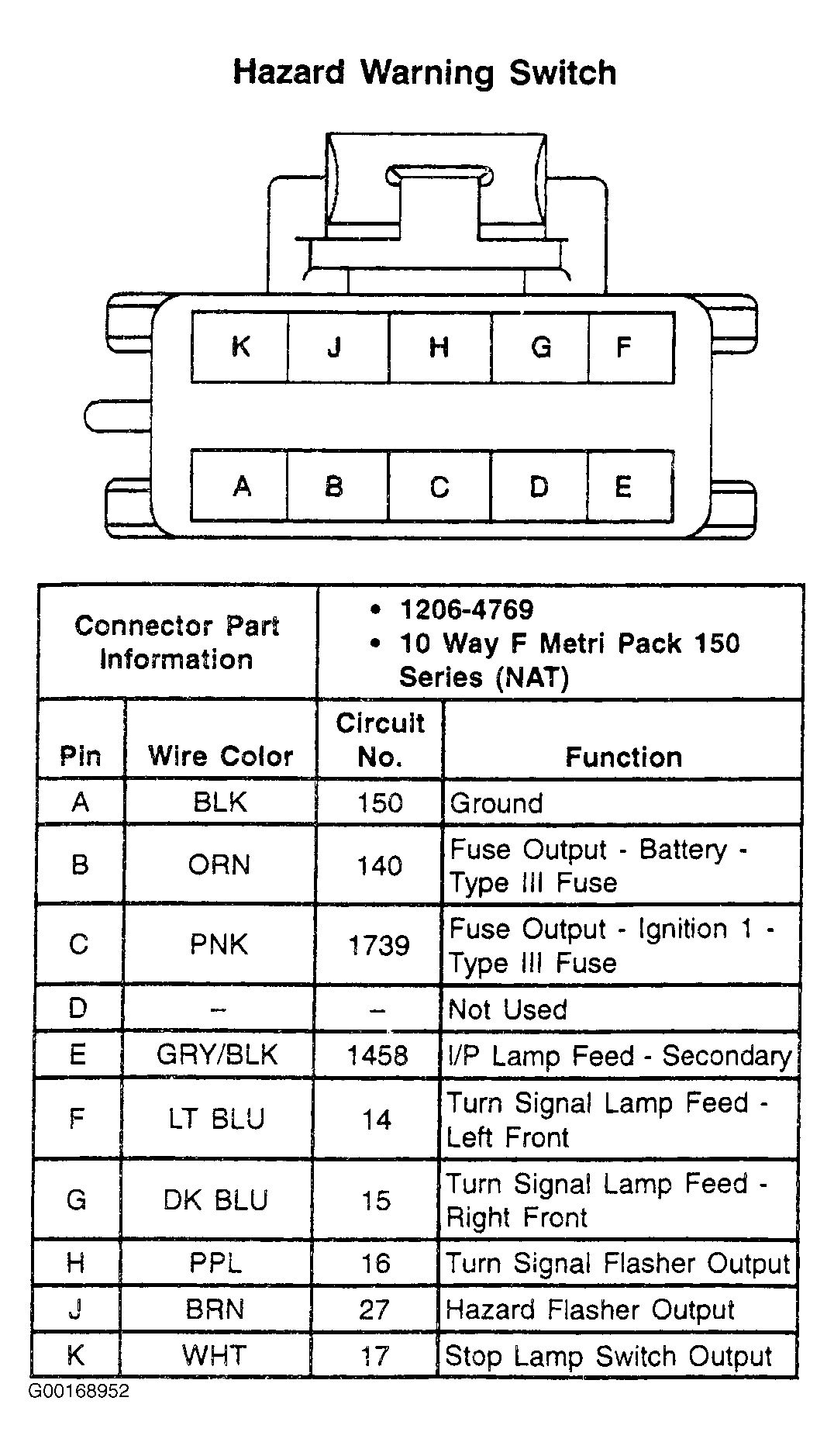

Fig 1: Hazard Warning Switch - 10-Pin Connector (Natural)
G00168952Courtesy of GENERAL MOTORS CORP.
