Connector Terminal Identification
›
Hood Ajar Indicator Switch
Hood Ajar Indicator Switch

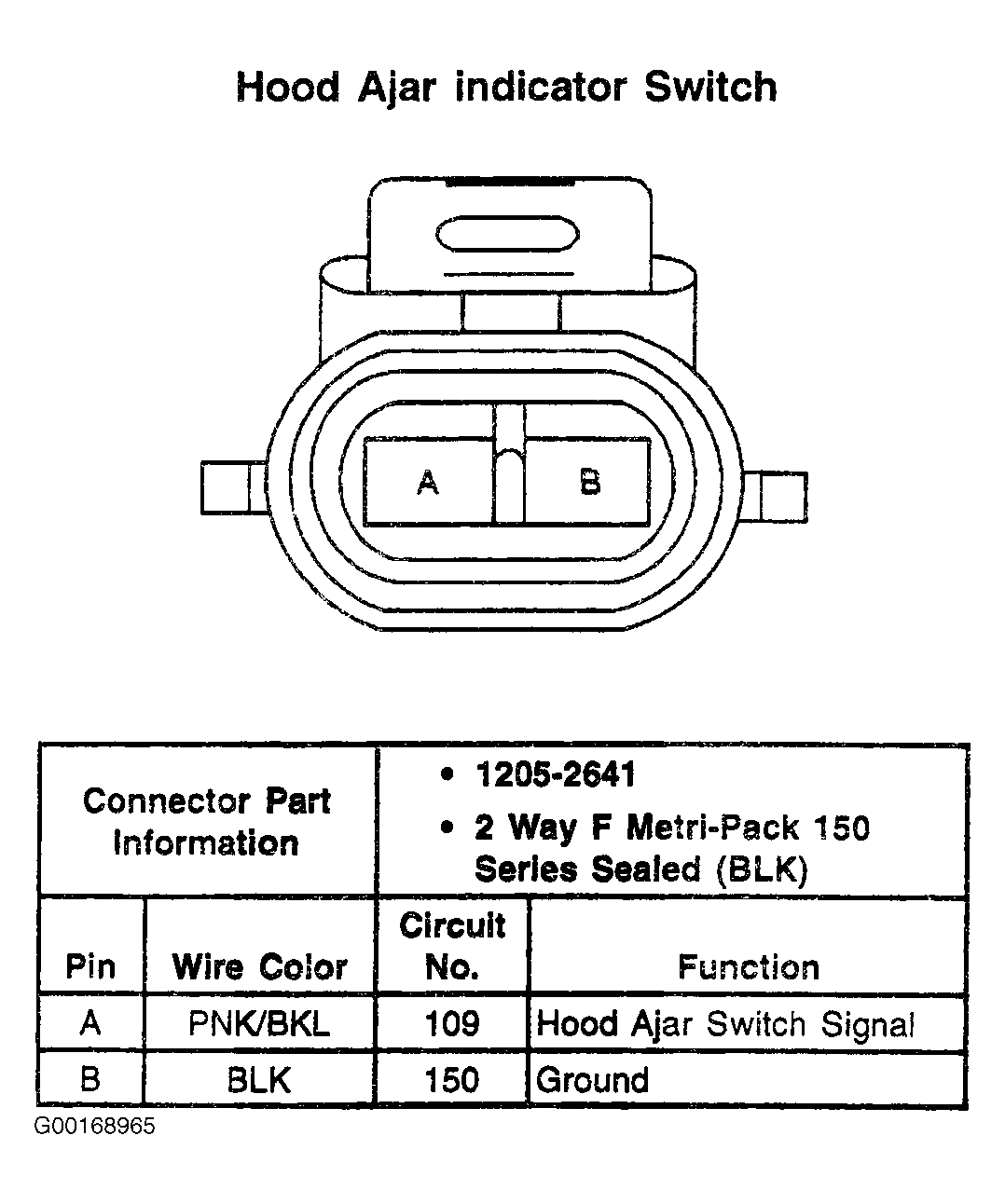

Fig 1: Hood Ajar Indicator Switch - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
