Connector Terminal Identification
›
Inside Rearview Mirror
Inside Rearview Mirror

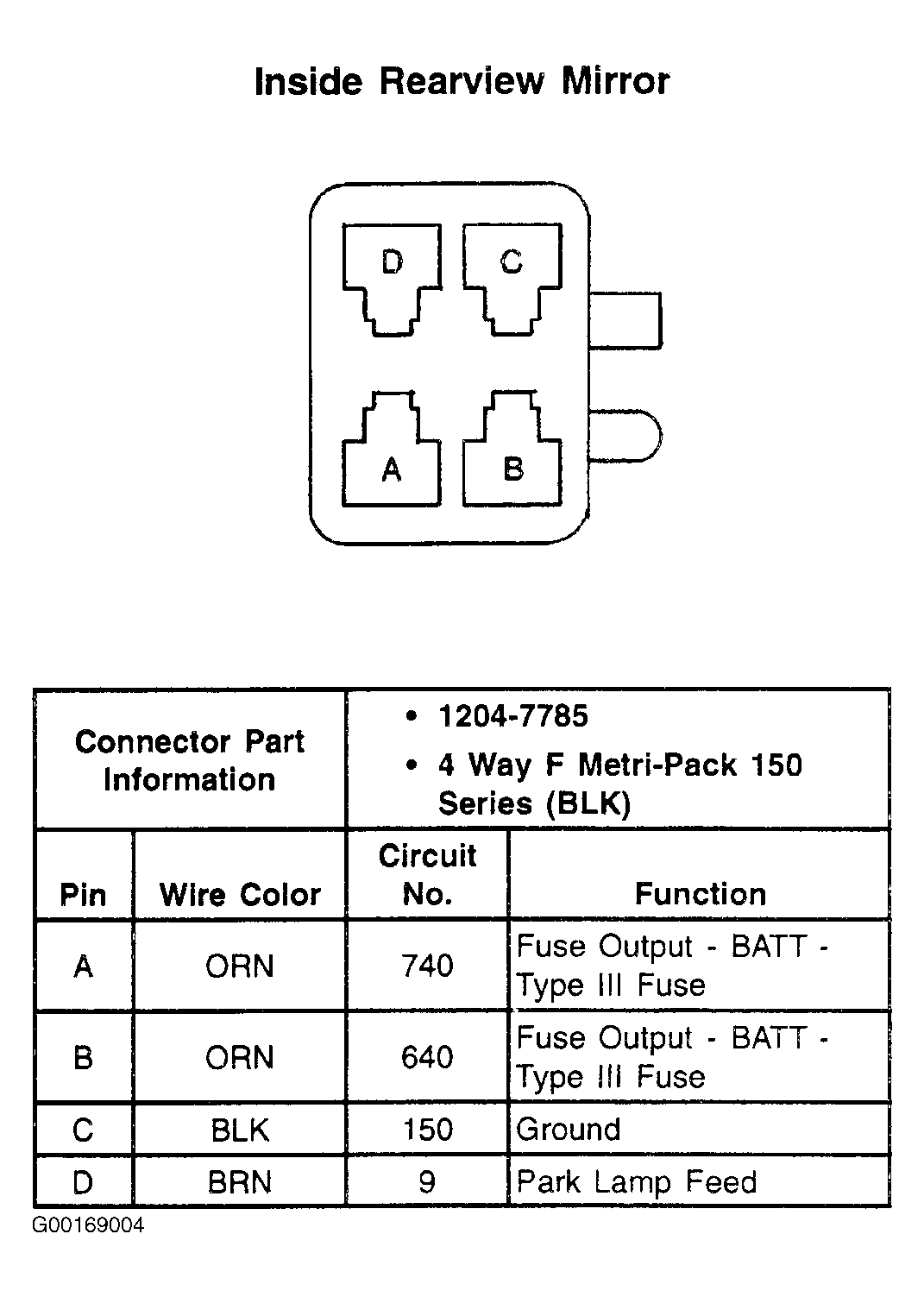

Fig 1: Inside Rearview Mirror - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
