Connector Terminal Identification
›
Instrument Panel Compartment Lamp
Instrument Panel Compartment Lamp

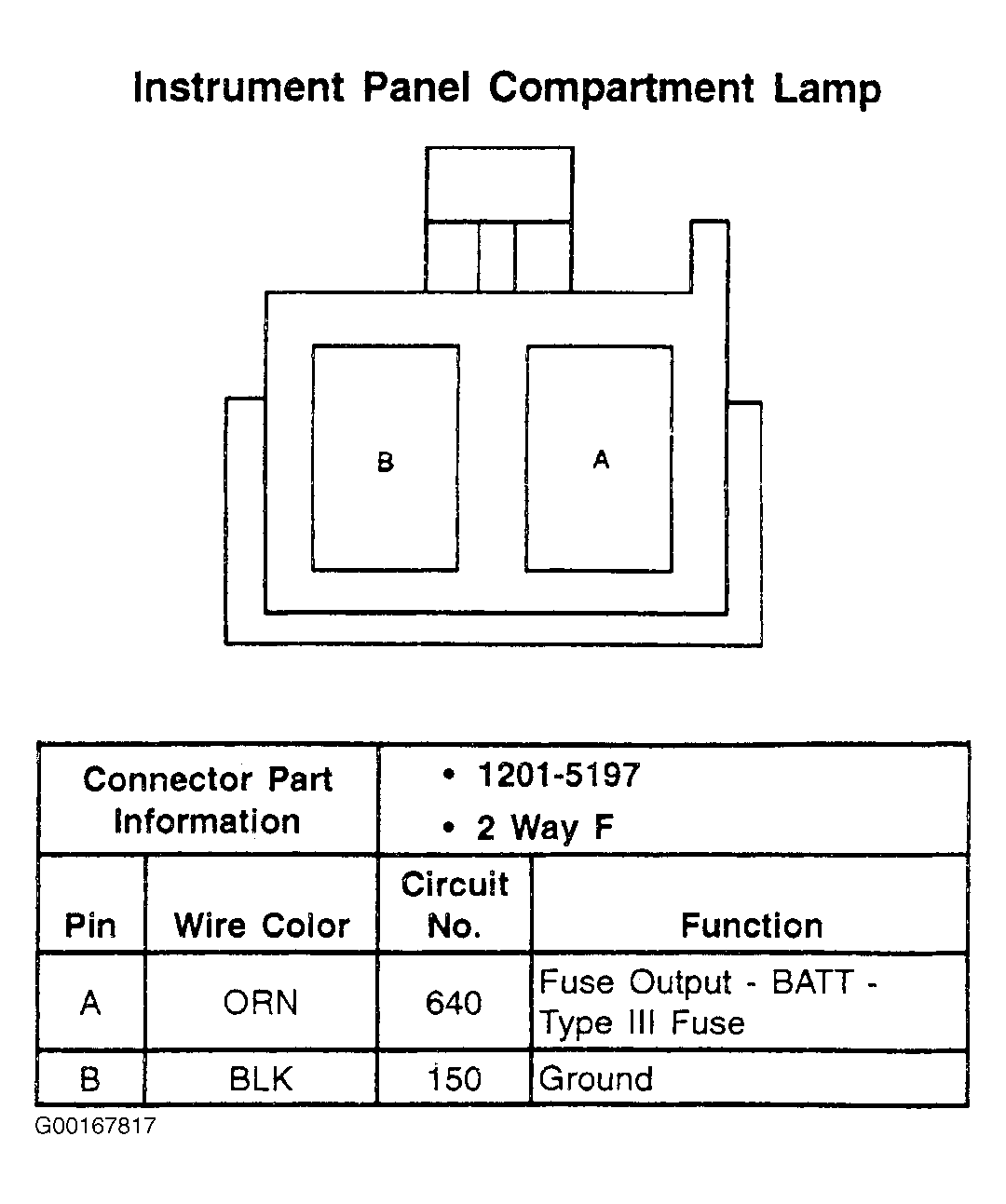

Fig 1: Instrument Panel Compartment Lamp - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
