Instrument Panel Courtesy Lamp (RH)

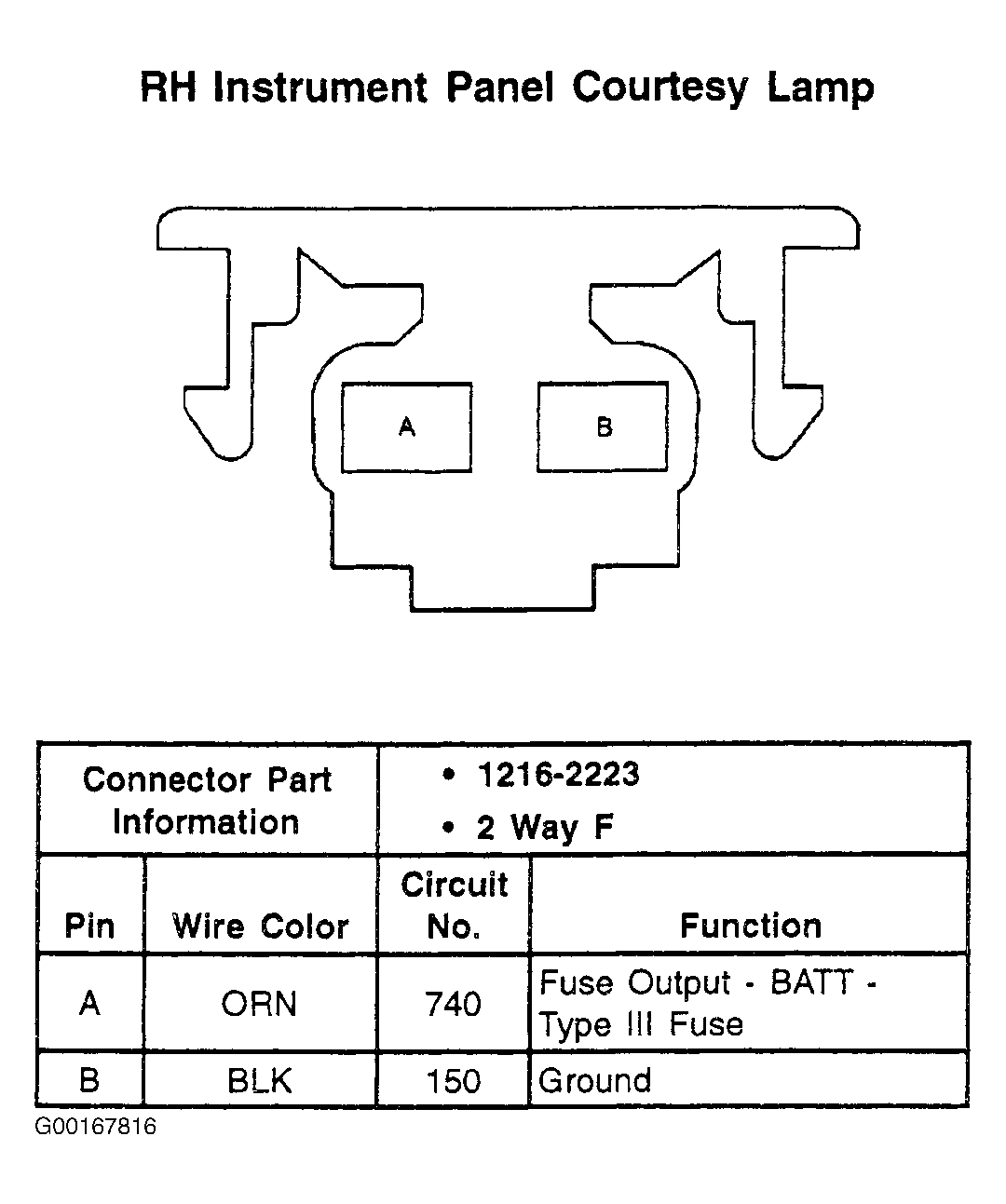

Fig 1: Instrument Panel Courtesy Lamp (RH) - 2-Pin Connector
G00167816Courtesy of GENERAL MOTORS CORP.
