Park/Neutral Position & Backup Switch C1

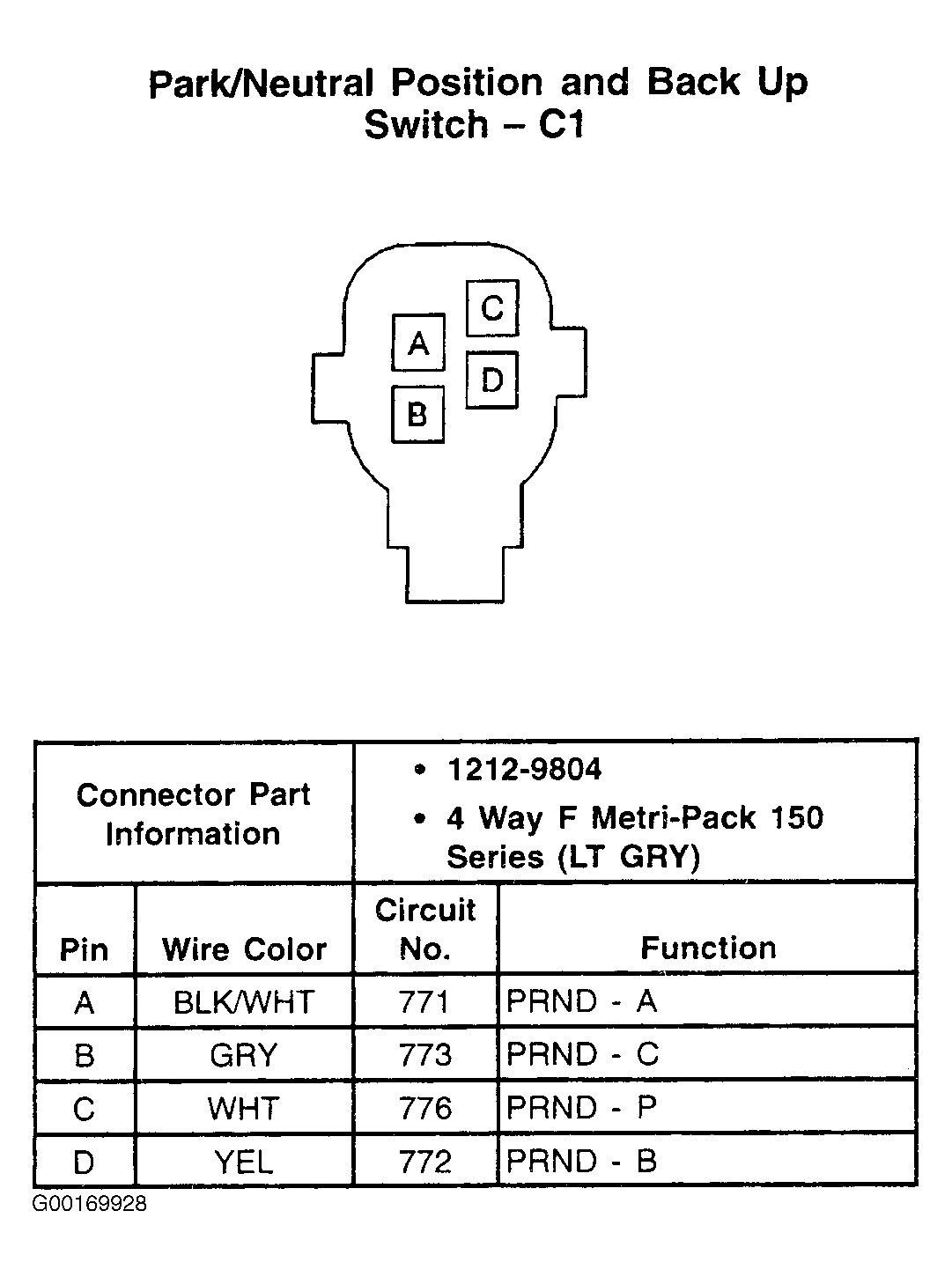

Fig 1: Park/Neutral Position & Backup Switch C1 - 4-Pin Connector (Light Gray)
G00169928Courtesy of GENERAL MOTORS CORP.
