Connector Terminal Identification
›
SUNLOAD Temperature Sensor
SUNLOAD Temperature Sensor

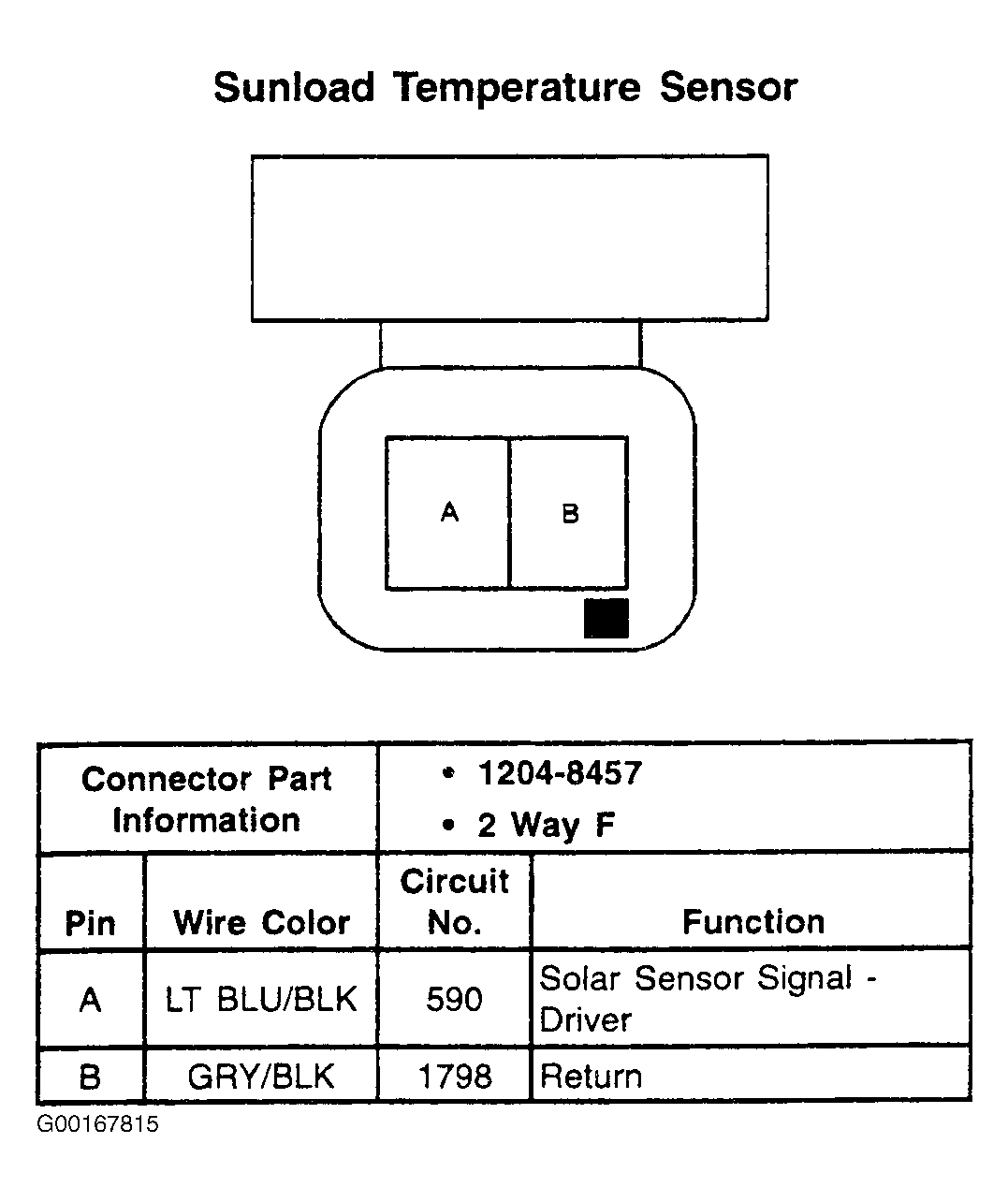

Fig 1: Sunload Temperature Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
