Secondary Air Injection (Air) Pump

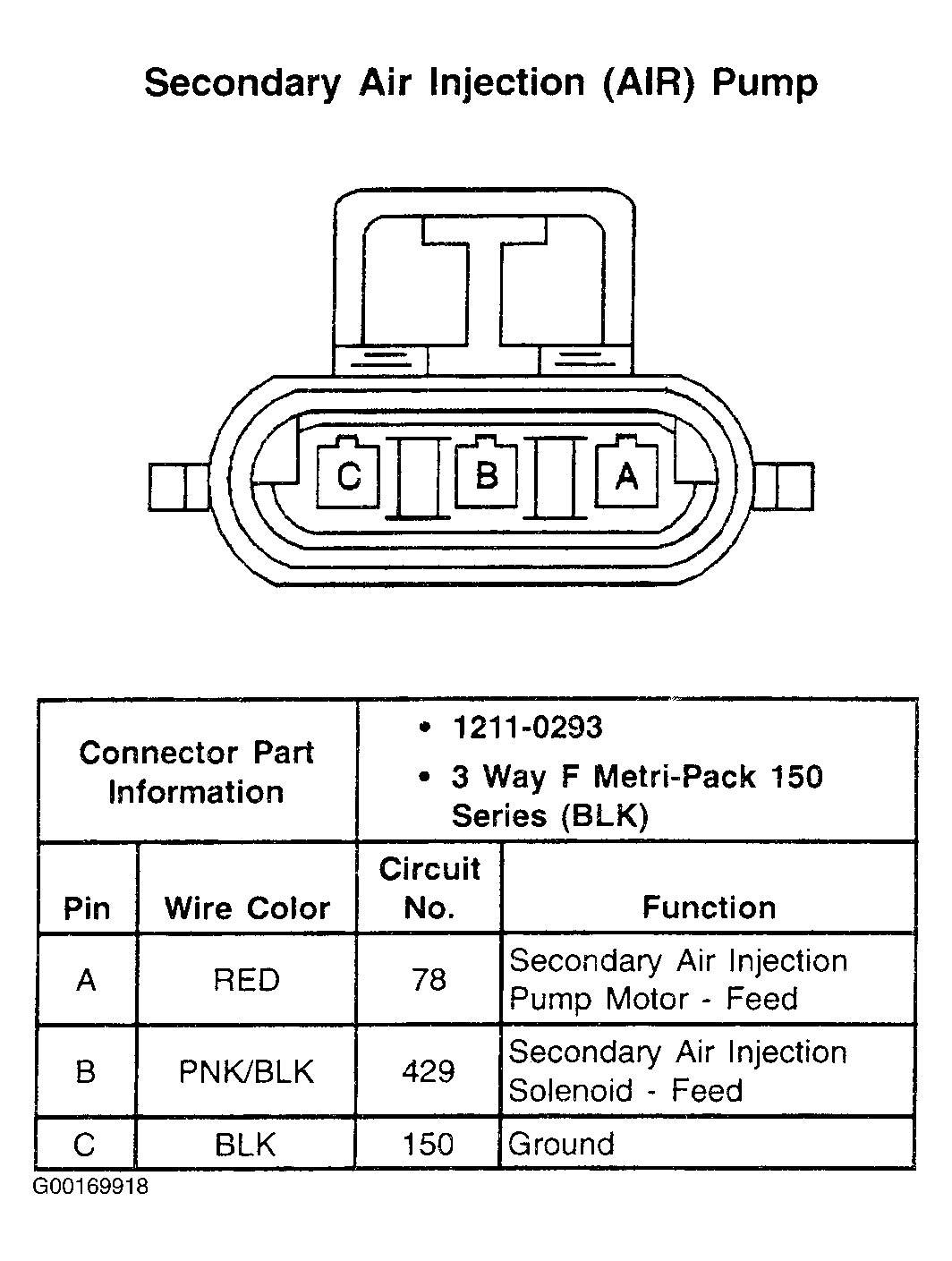

Fig 1: Secondary Air Injection (AIR) Pump - 3-Pin Connector (Black)
G00169918Courtesy of GENERAL MOTORS CORP.
