Steering Wheel Lock

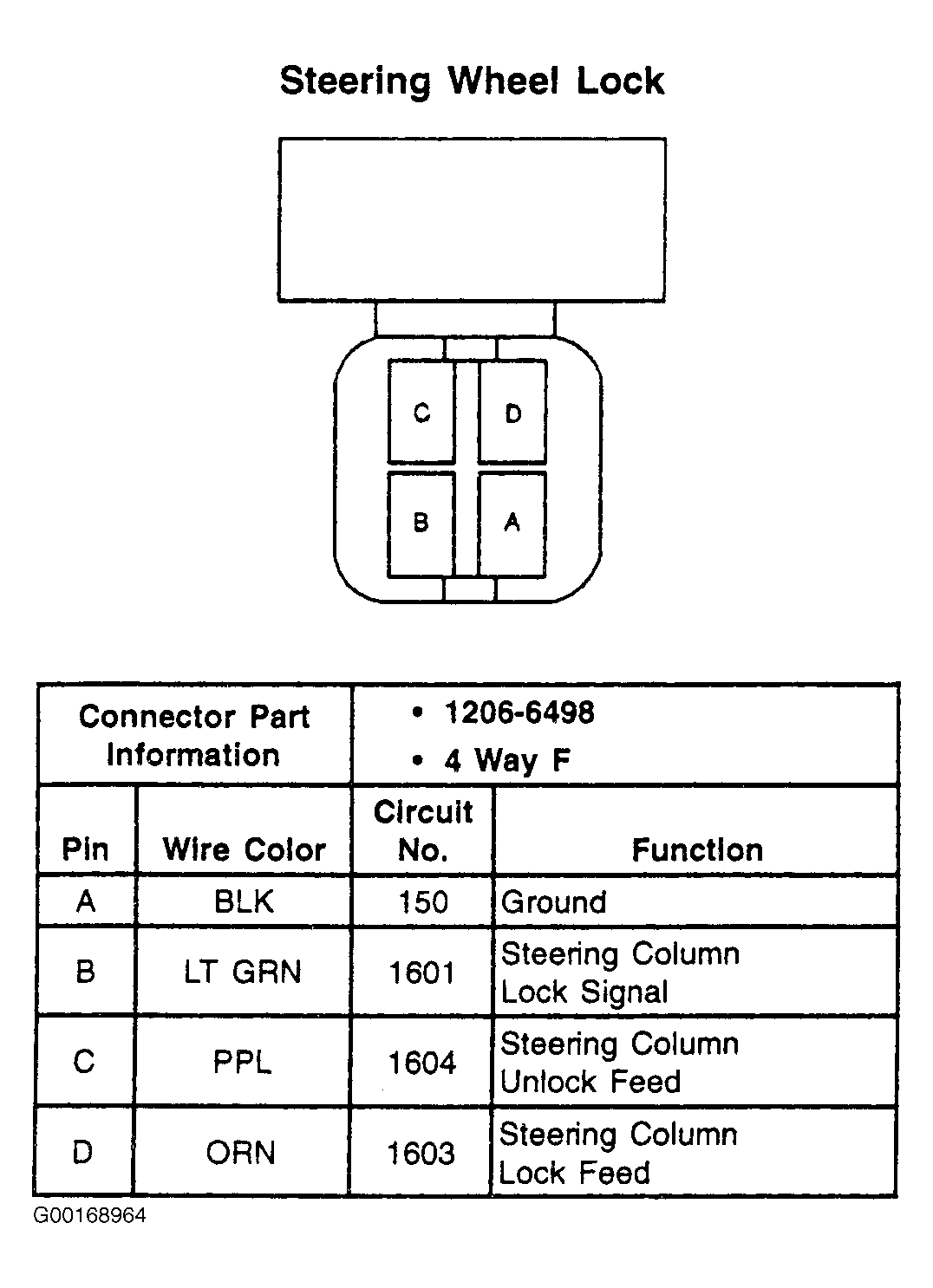

Fig 1: Steering Wheel Lock - 4-Pin Connector
G00168964Courtesy of GENERAL MOTORS CORP.
