Sunshade Mirror Lamp (RH)

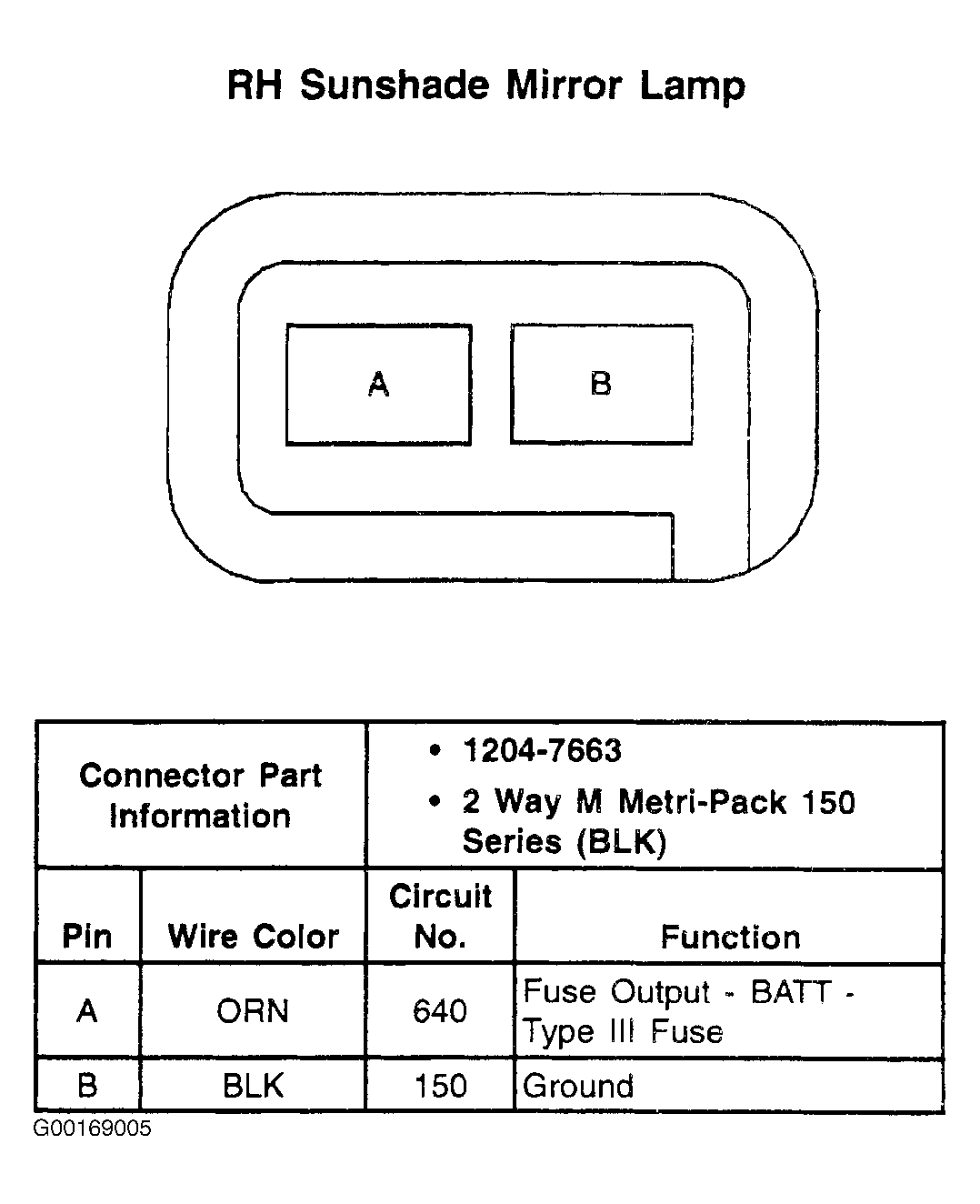

Fig 1: Sunshade Mirror Lamp (RH) - 2-Pin Connector (Black)
G00169005Courtesy of GENERAL MOTORS CORP.
