Windshield Wiper Motor

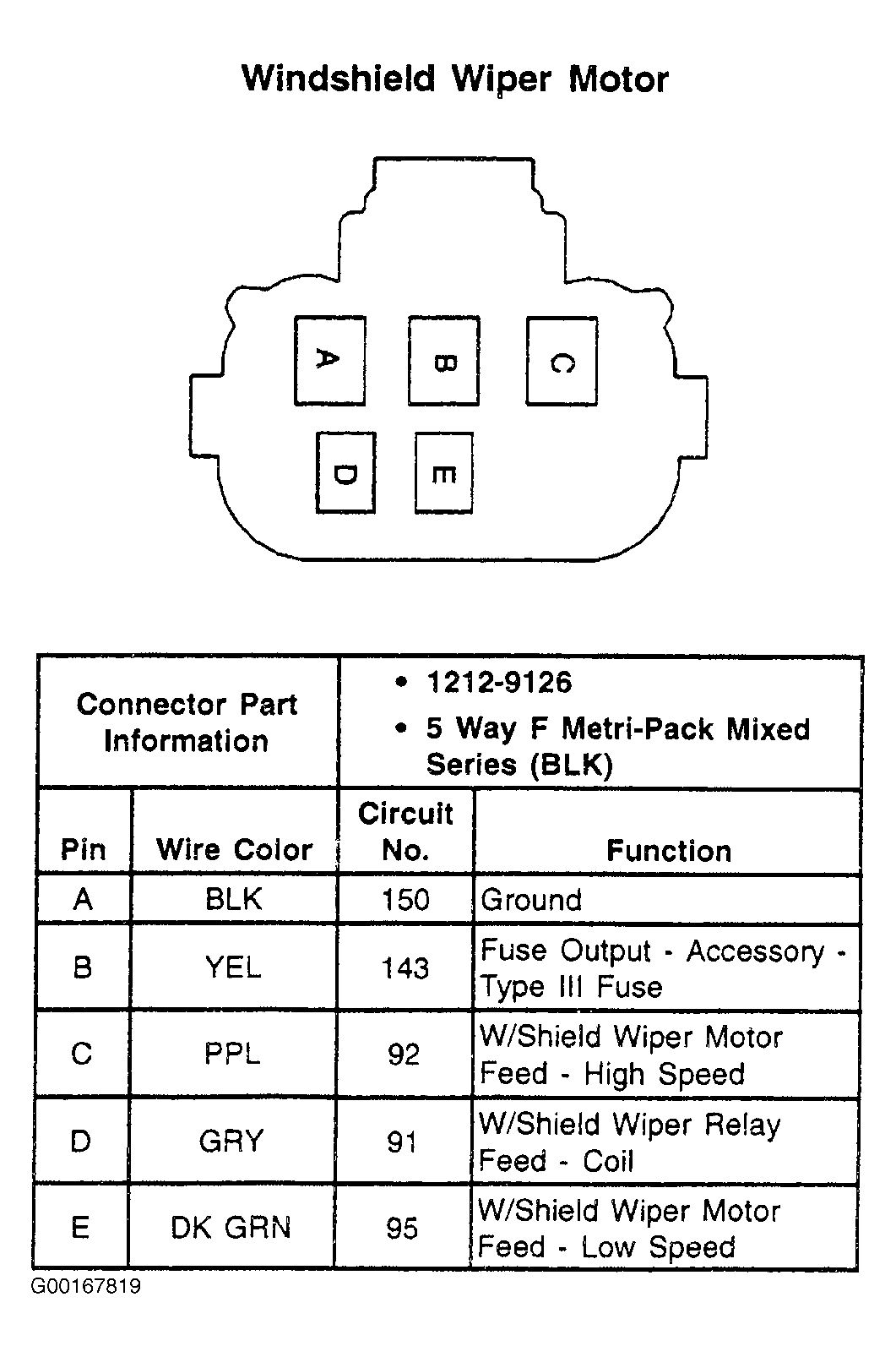

Fig 1: Windshield Wiper Motor - 5-Pin Connector (Black)
G00167819Courtesy of GENERAL MOTORS CORP.
