Connector Terminal Identification
›
Data Link Star #1 & #2
Data Link Star #1 & #2

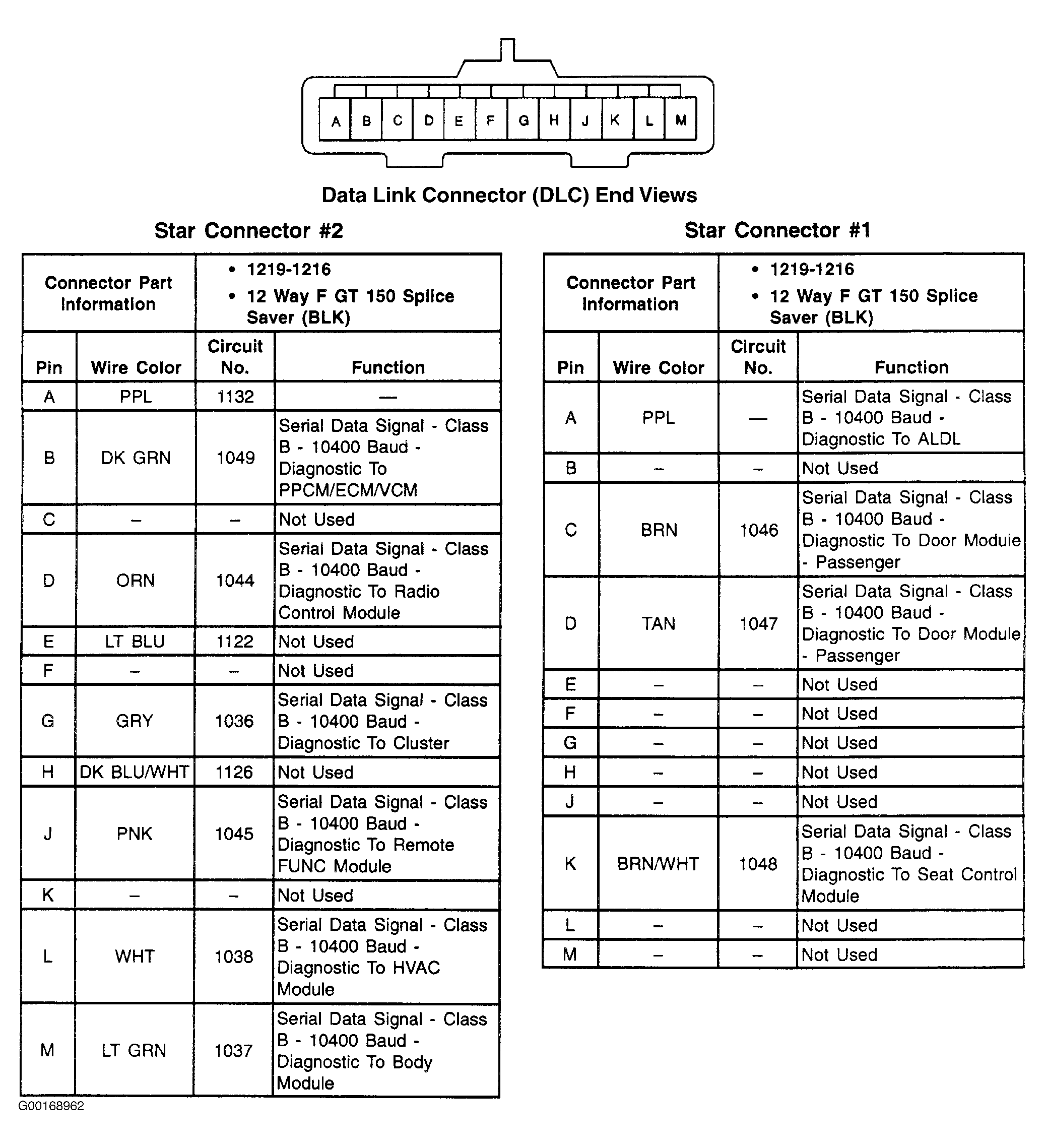

Fig 1: Data Link Star #1 & #2 - 12-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
