Fuel Tank Filler Door Release Switch

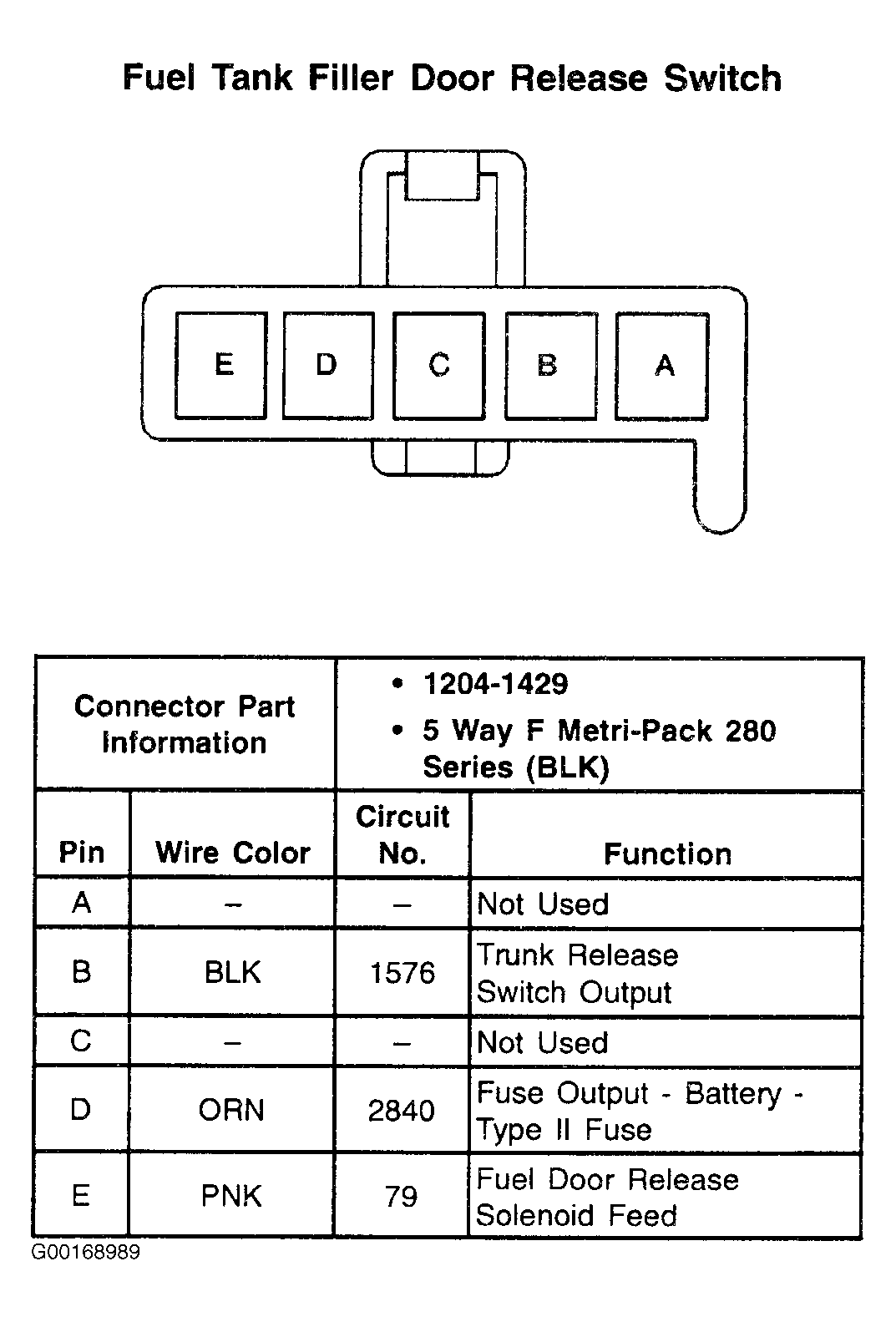

Fig 1: Fuel Tank Filler Door Release Switch - 5-Pin Connector (Black)
G00168989Courtesy of GENERAL MOTORS CORP.
