Daytime Running Lamp Control Module C1

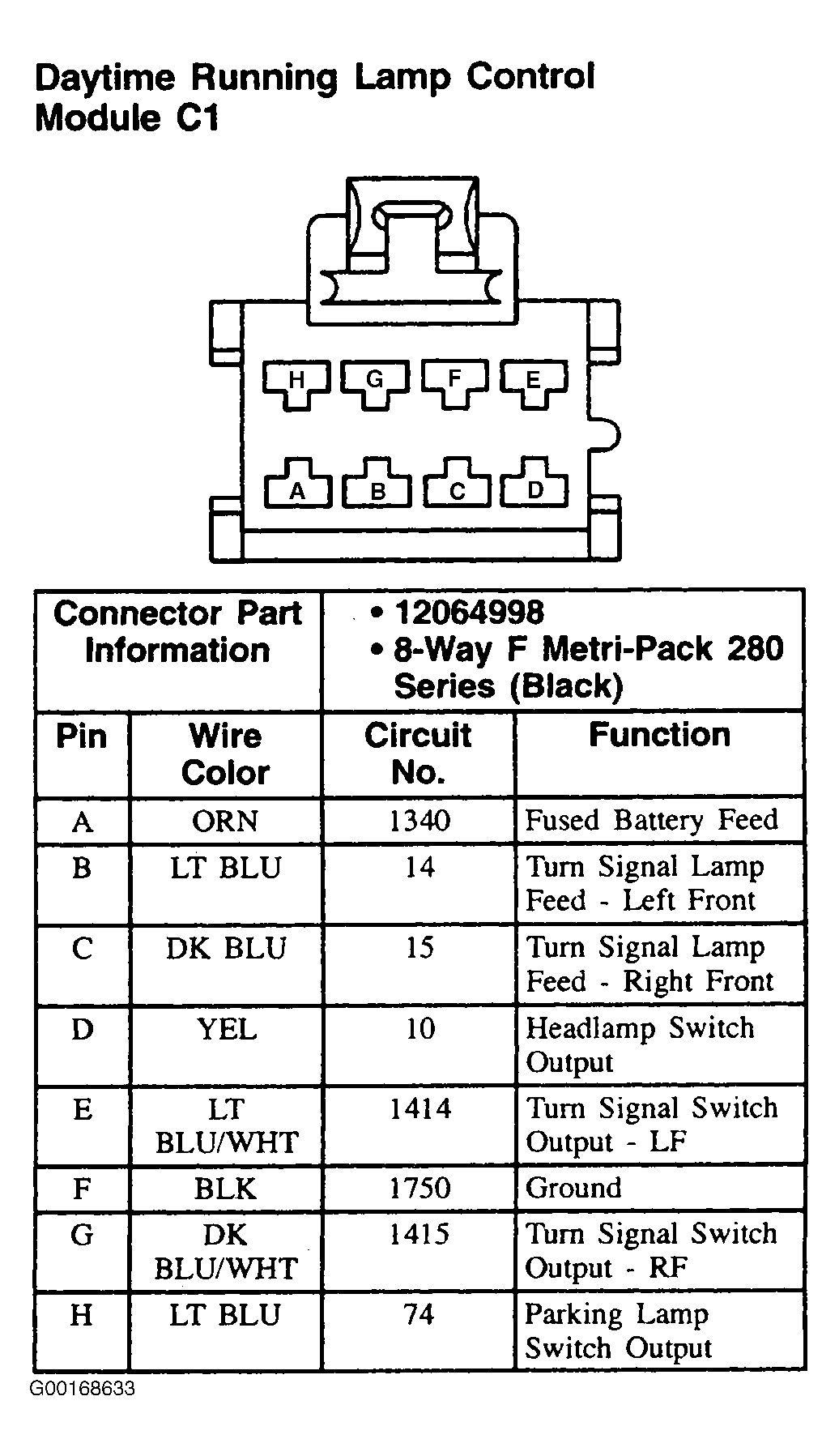

Fig 1: Daytime Running Lamp Control Module C1 (Century & Regal) - 8-Pin Connector (Black)
G00168633Courtesy of GENERAL MOTORS CORP.
