Home › Chevrolet › 1997 › Lumina Base › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Hazard Lamp/Turn Signal › Century & Regal

Century & Regal

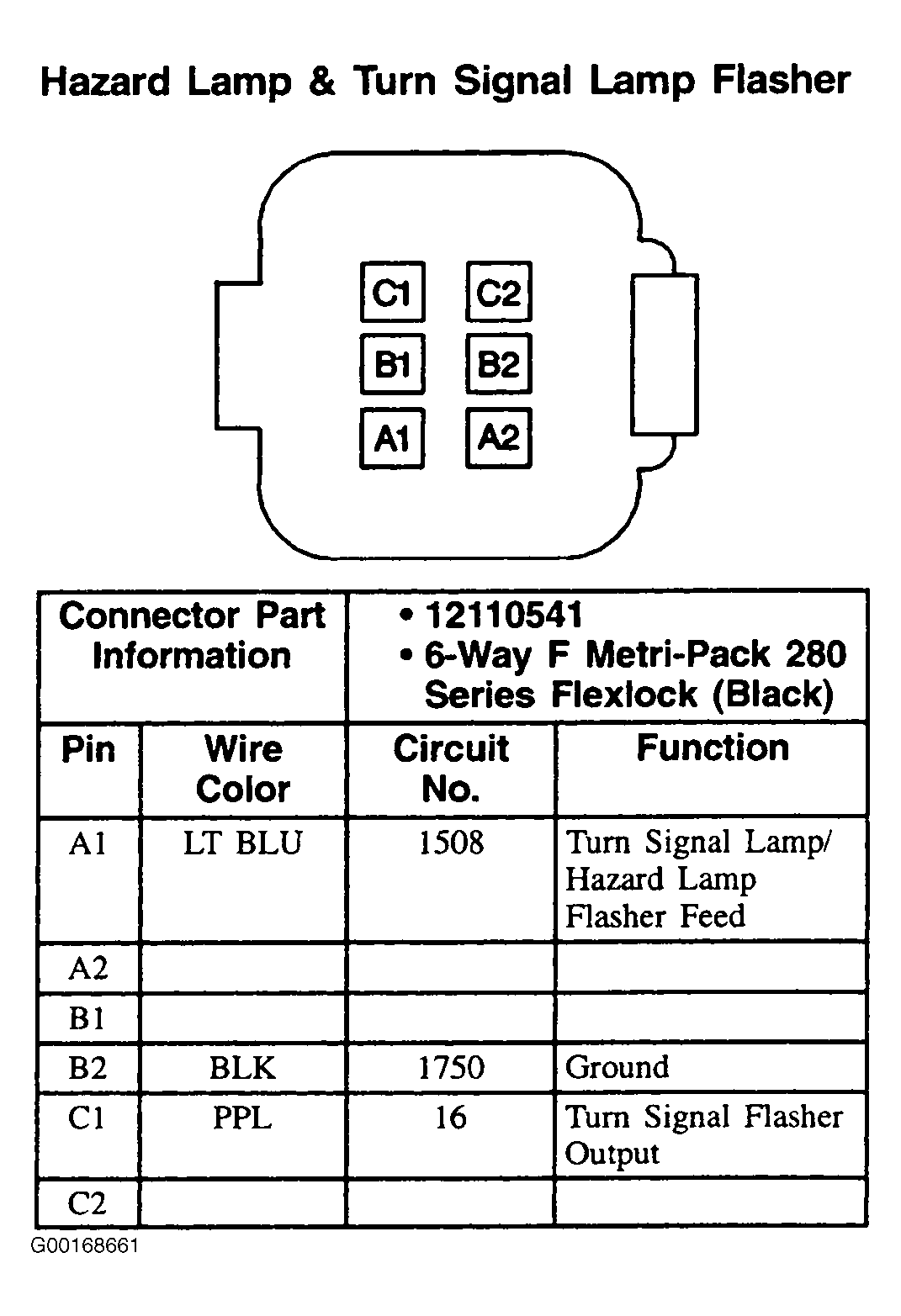

Fig 1: Hazard Lamp & Turn Signal Lamp Flasher (Century & Regal) - 6-Pin Connector (Black)
G00168661Courtesy of GENERAL MOTORS CORP.
