Connector Terminal Identification
›
Driver Information Display
›
Century & Regal
Century & Regal

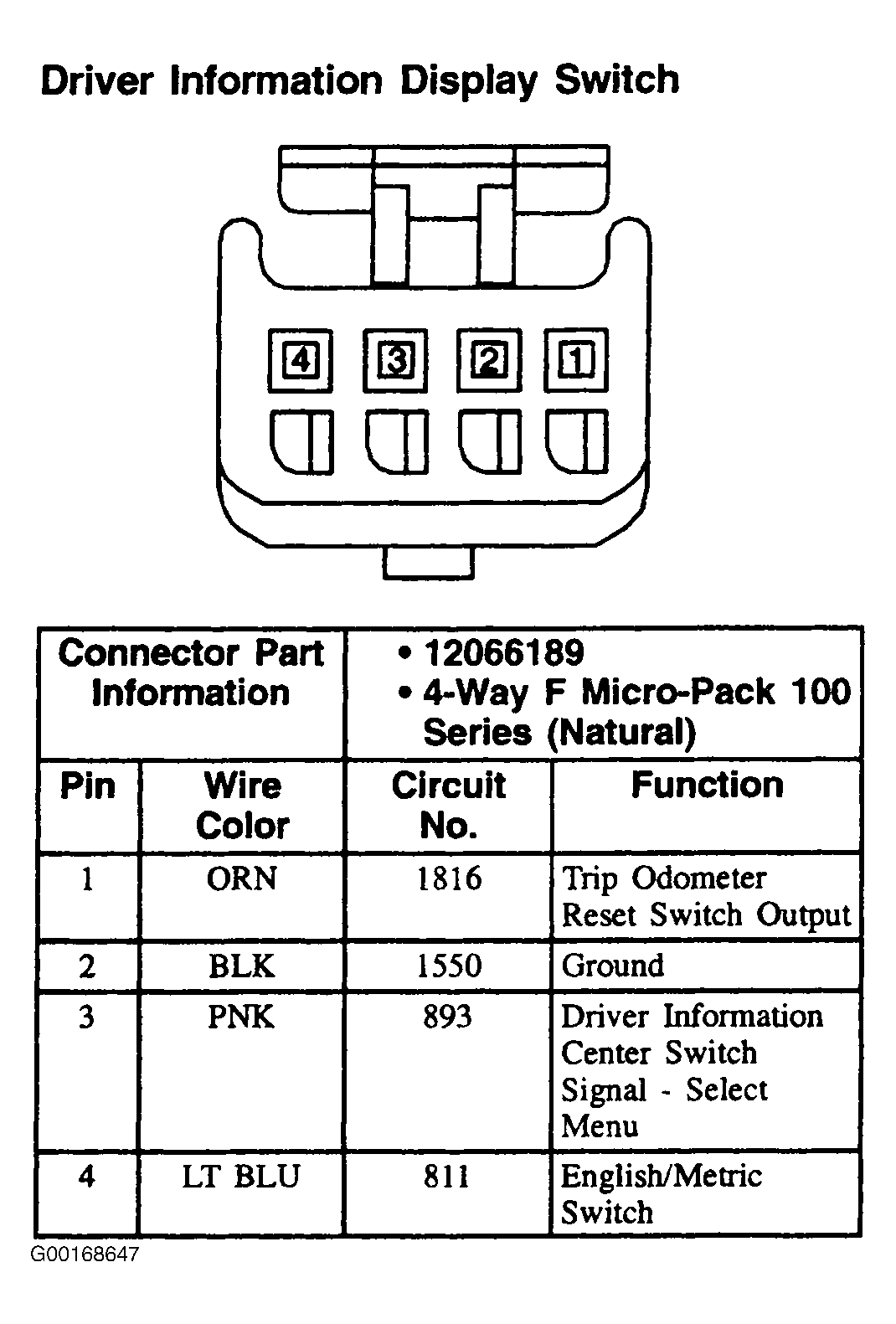

Fig 1: Driver Information Display Switch (Century & Regal) - 4-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
