Heater-A/C Control (HVAC System, A/C Front, Automatic Temperature Control)

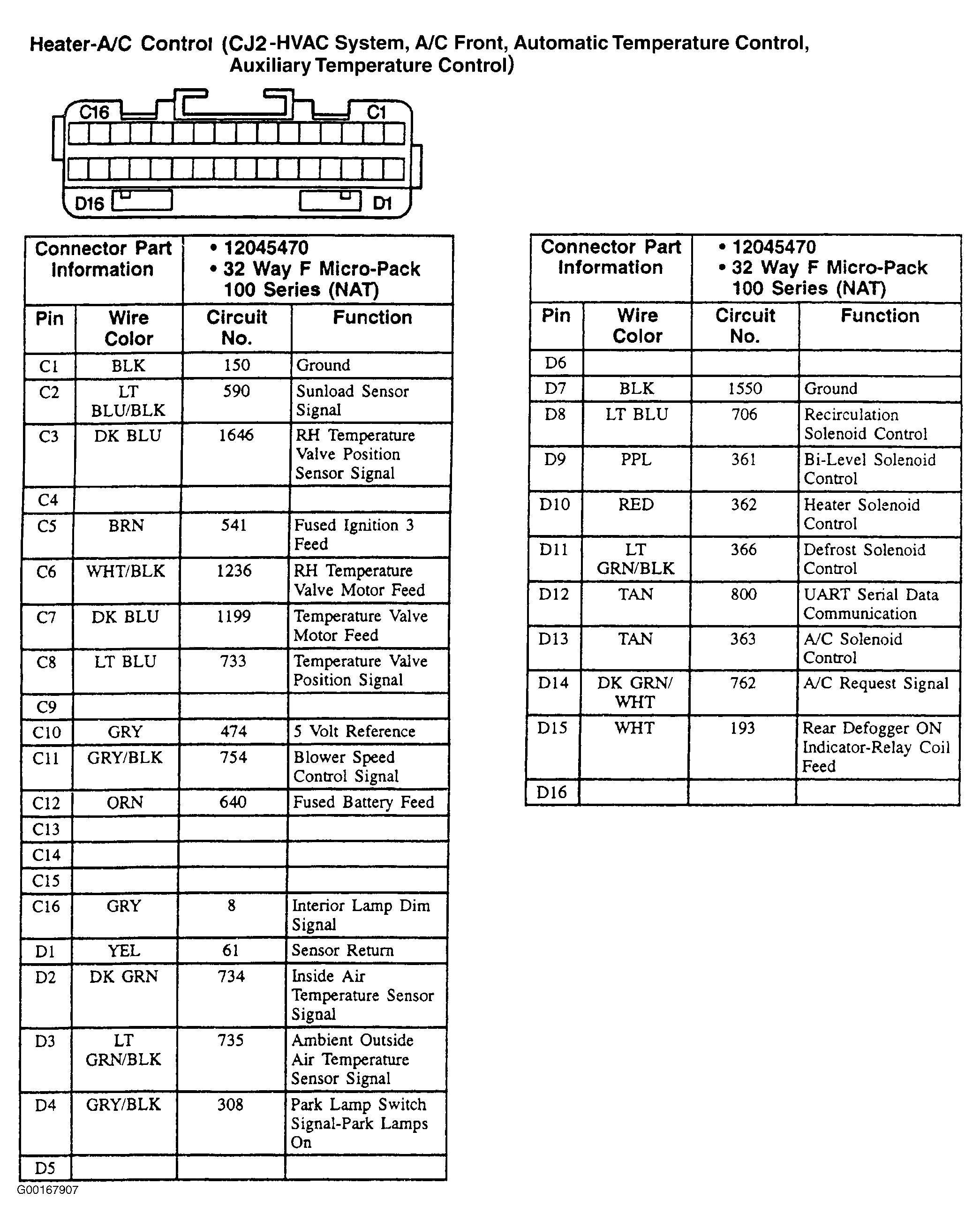

Fig 1: Heater-A/C Control (CJ2 - HVAC System, A/C Front, Automatic Temperature Control, Auxiliary Temperature Control) (Grand Prix) - 32-Pin Connector (Natural)
G00167907Courtesy of GENERAL MOTORS CORP.
