Connector Terminal Identification
›
A/C Compressor Clutch
›
Cutlass & MALIBU
Cutlass & MALIBU

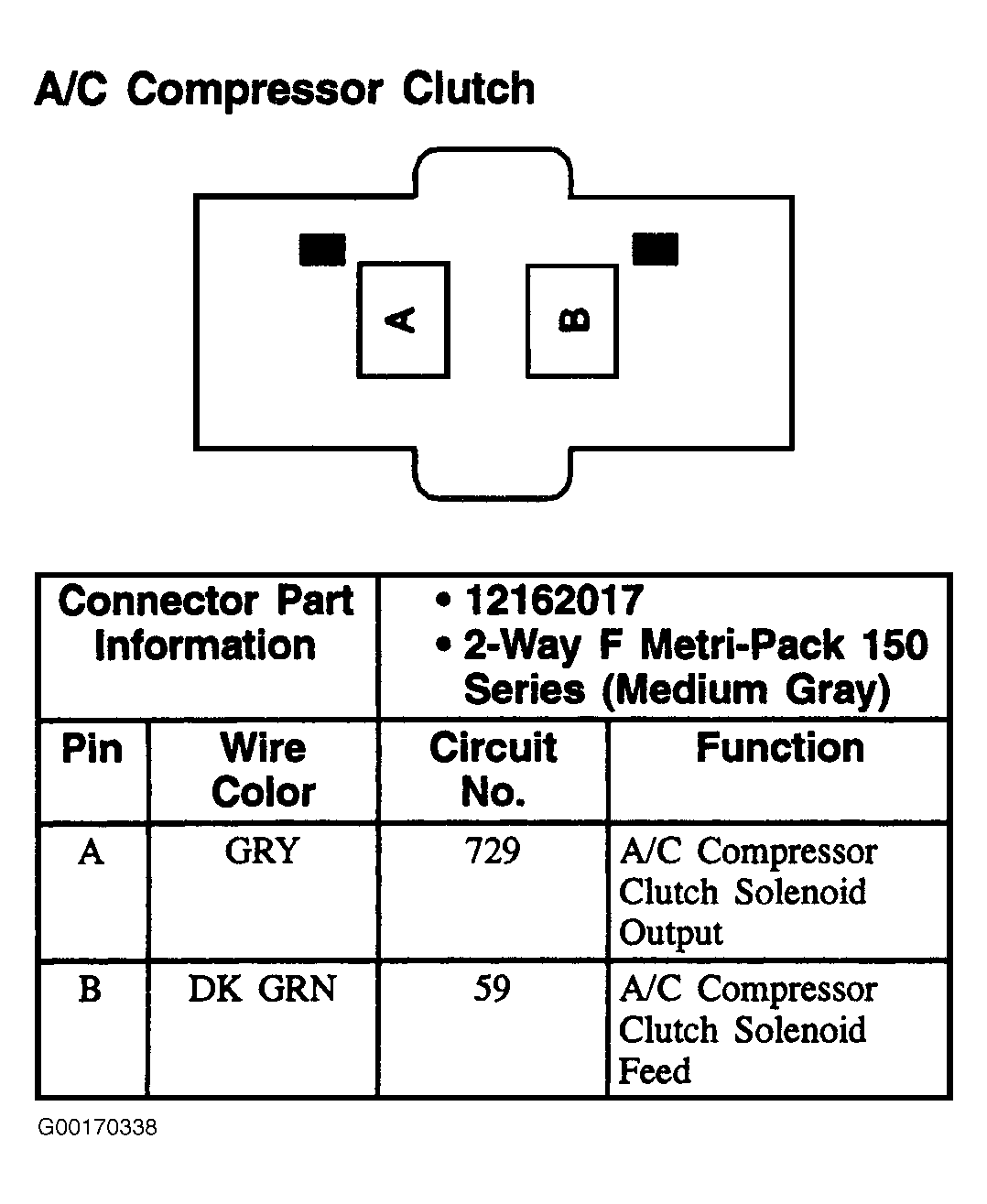

Fig 1: A/C Compressor Clutch (Cutlass & Malibu) - 2-Pin Connector (Medium Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
